Input Shaft Assembly Installation
WARNING: This page is about a different car, the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, and 2018 Chevrolet Suburban. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY Input Shaft Assembly Installation

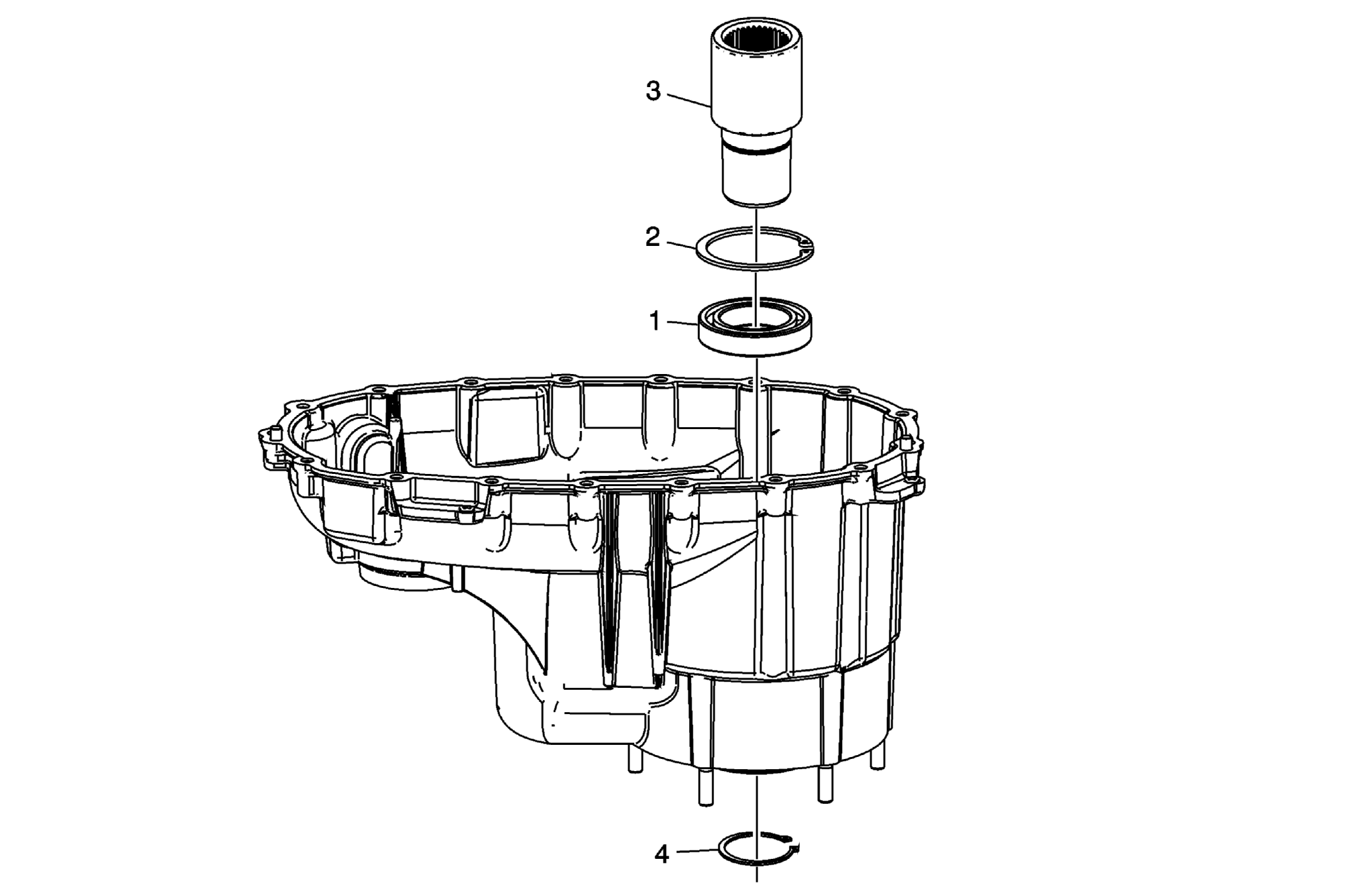

| Callout |
Component Name |
| 1 |
Transfer Case Input Shaft Bearing Assembly |
| 2 |
Transfer Case Input Shaft Inner Retaining Ring |
| 3 |
Transfer Case Input Shaft |
| 4 |
Transfer Case Input Shaft Bearing Outer Retaining Ring |
