Transfer Case Identification
WARNING: This page is about a different car, the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, and 2018 Chevrolet Suburban. However, it is still accessible from the selected car via links, so may be relevant.

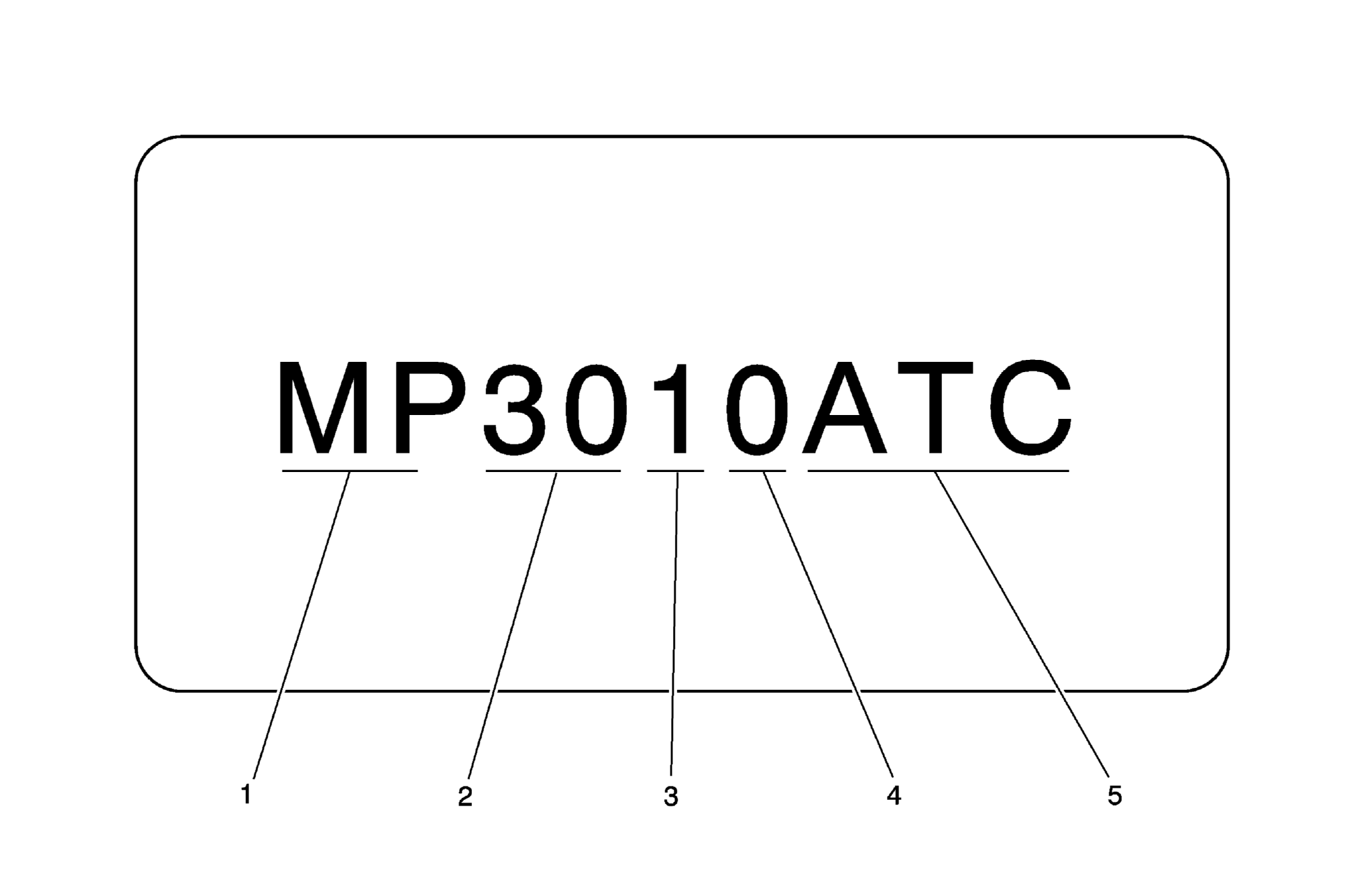

The transfer case identification label information contains the following information:
- Magna Powertrain (1)
- Features: Code for Product Technology (2)
- 12: Part time - manual - Synchronizer
- 16: Part time - electric - Synchronizer
- 30: Wet clutch - electro-mechanic actuation
- Number of speeds (3)
- Size - Low Range - Skid torque rating (4)
- 0: N/A
- 1: 1 - 800 N.m (0.74 - 590 lb ft)
- 2: 800 - 1000 N.m (590 - 738 lb ft)
- 3: 1000 - 1200 N.m (738 - 885 lb ft)
- 4: 1200 - 1400 N.m (885 - 1033 lb ft)
- 5: 1400 - 1600 N.m (1033 - 1180 lb ft)
- 6: 1600 - 1800 N.m (1180 - 1328 lb ft)
- Appendix (5) i.e. ATC
