Input Shaft Identification
WARNING: This page is about a different car, the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, and 2018 Chevrolet Suburban. However, it is still accessible from the selected car via links, so may be relevant.

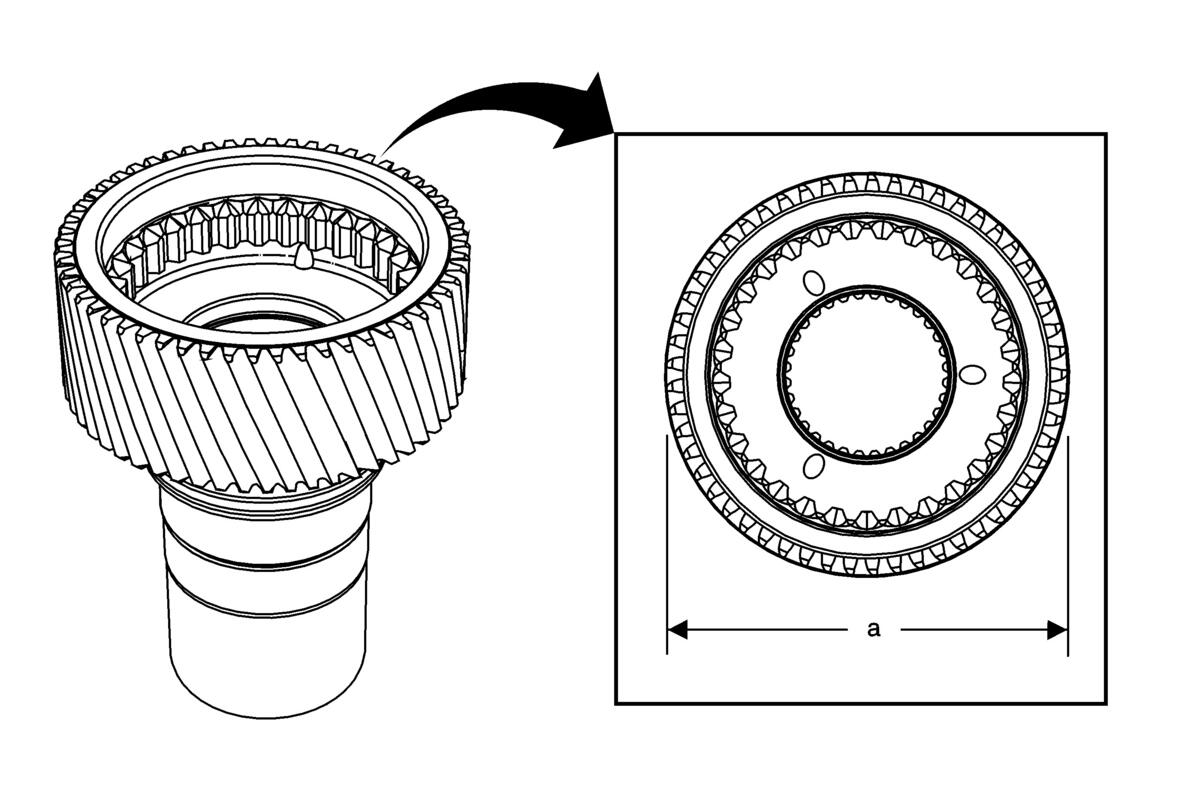

The first design input shaft can be identified as a 56 tooth design with an outside diameter (a) of 91.4 mm (3.60 in) and two oil drain holes 180 degrees apart.
The second design input shaft can be identified as a 53 tooth design with an outside diameter (a) of 87.50 mm (3.44 in) and three oil drain holes 120 degrees apart.
