2017 NQF/NQG- Interim Model Year Design Change - DT - 51204 - New Design Case Separating Tool
WARNING: This page is about a different car, the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, and 2018 Chevrolet Suburban. However, it is still accessible from the selected car via links, so may be relevant.

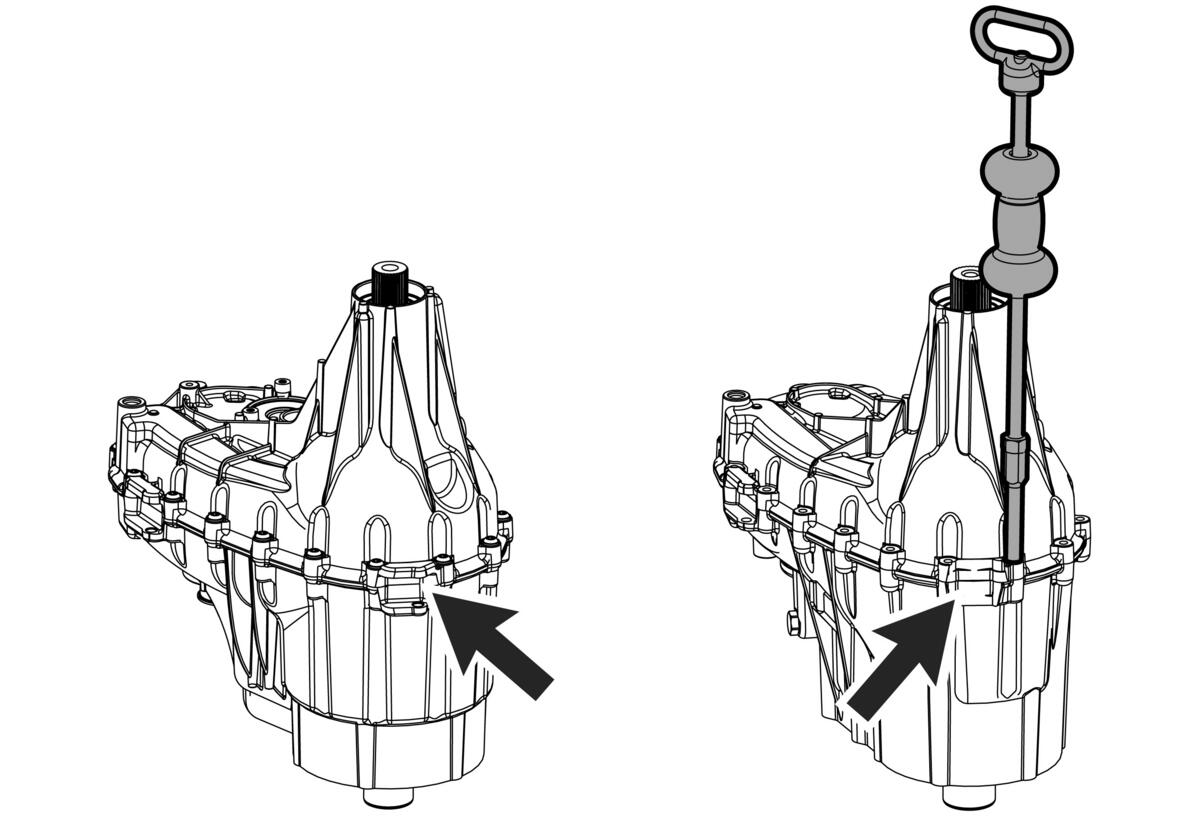

Fig 1: 2017 NQF/NQG- Interim Model Year Design Change -- DT--51204 - New Design Case Separating Tool
For 2017MY super heavy duty NQF / NQG transfer cases with diesel engine and Alison transmission, one pair of the transfer case case-half separating flanges have been removed to address in-vehicle packaging concerns.
With the removal of the case separating flanges, a new design tool has been developed. DT - 51204 Case Separating Tool has been created to assist the technician when performing disassembly of the transfer case. The new design tool is to be used in conjunction with GE-02619-A Slide Hammer when separating the case halve.
