Drive Range, Sixth Gear - A/T System Hydraulic Diagram

WARNING: This page is about a different car, the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, 2018 Chevrolet Suburban 3500 HD, and 2018 Chevrolet Suburban. However, it is still accessible from the selected car via links, so may be relevant.

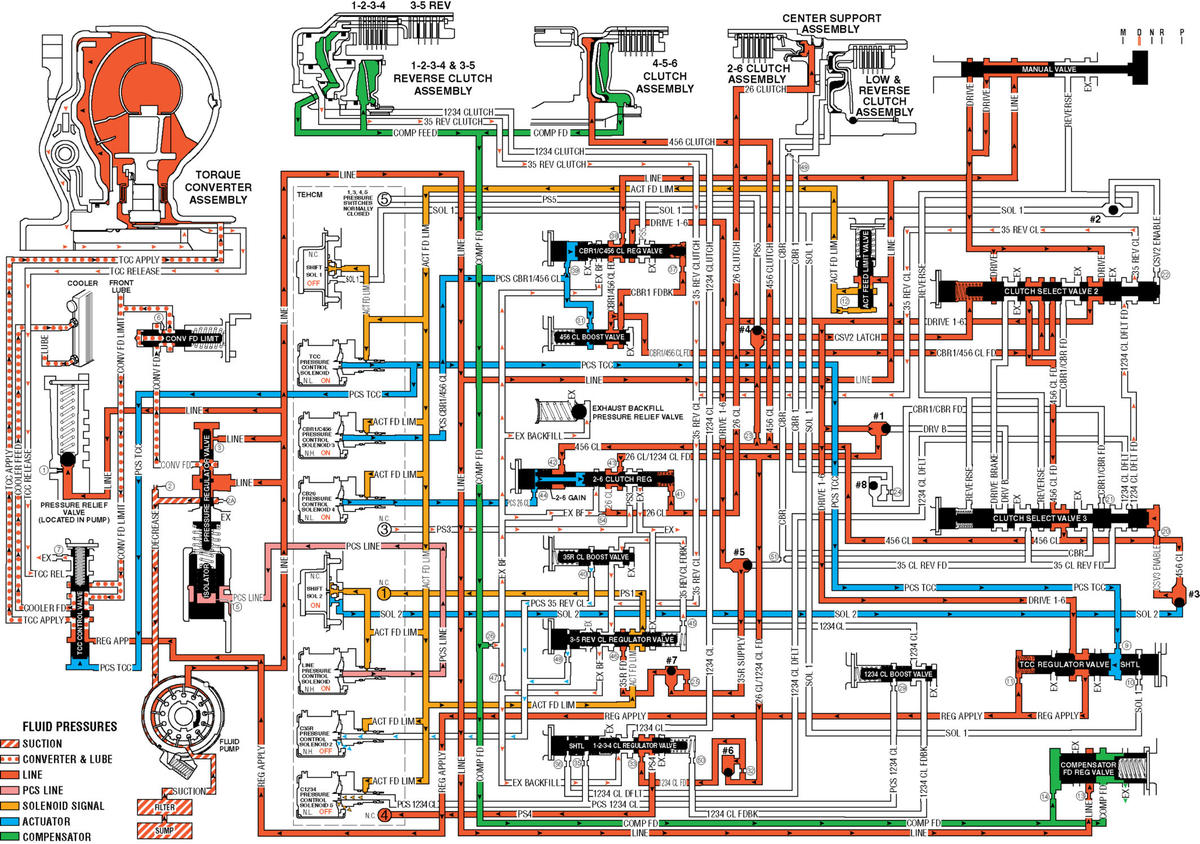

Fig 1: Drive Range, Sixth Gear Hydraulic Diagram
GM3637924Courtesy of GENERAL MOTORS COMPANY
