Air Cleaner Outlet Duct Replacement (Chevrolet And GMC)

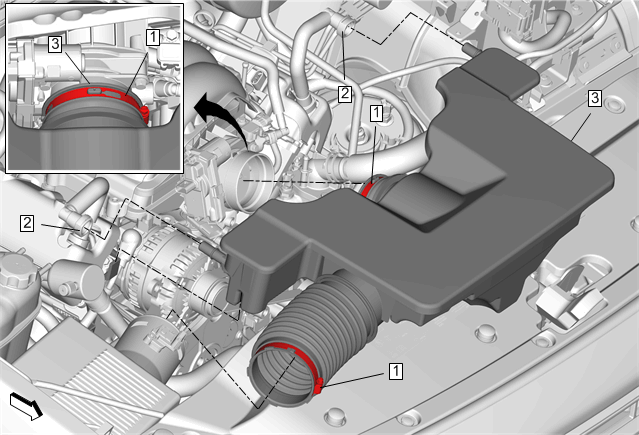

Fig 1: Air Cleaner Outlet Duct
GM3946893Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Air Cleaner Outlet Duct Clamps (Qty: 2)
NOTE:

Ensure the outlet duct is fully seated to the mating surfaces before clamping. Verify that the cuff is not rolled under.

2 PCV Tube Quick Connect Fitting
3 Air Cleaner Outlet Duct
