Generator And Power Steering Pump Bracket Replacement (L96)

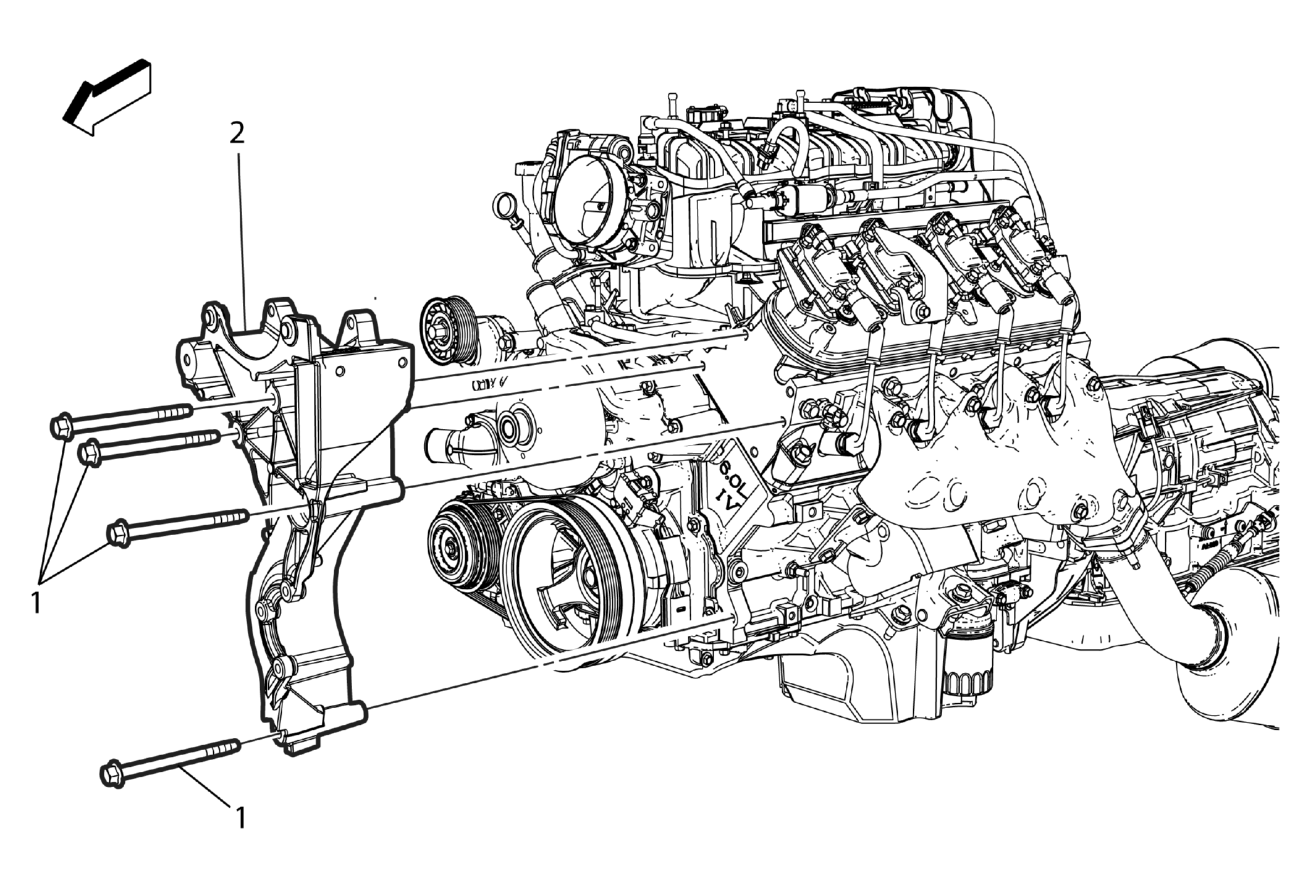

Fig 1: Generator and Power Steering Pump Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the generator. Refer to Generator Replacement (L96) . Remove the power steering pump. Refer to Power Steering Pump Replacement (Heavy Duty) . Remove the drive belt idler pulley, if replacing the bracket. Refer to Drive Belt Idler Pulley Replacement .
1	Generator and Power Steering Pump Bracket Fasteners (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten: 50 N.m (37 lb ft)
2	Generator and Power Steering Pump Bracket

Callout

Component Name

Preliminary Procedures

Remove the generator. Refer to Generator Replacement (L96) .
Remove the power steering pump. Refer to Power Steering Pump Replacement (Heavy Duty) .
Remove the drive belt idler pulley, if replacing the bracket. Refer to Drive Belt Idler Pulley Replacement .

Generator and Power Steering Pump Bracket Fasteners (Qty: 4)

CAUTION:

Tighten:
50 N.m (37 lb ft)

Generator and Power Steering Pump Bracket
