Radiator Air Upper Baffle And Deflector Replacement (Right Of Radiator L83 L86)

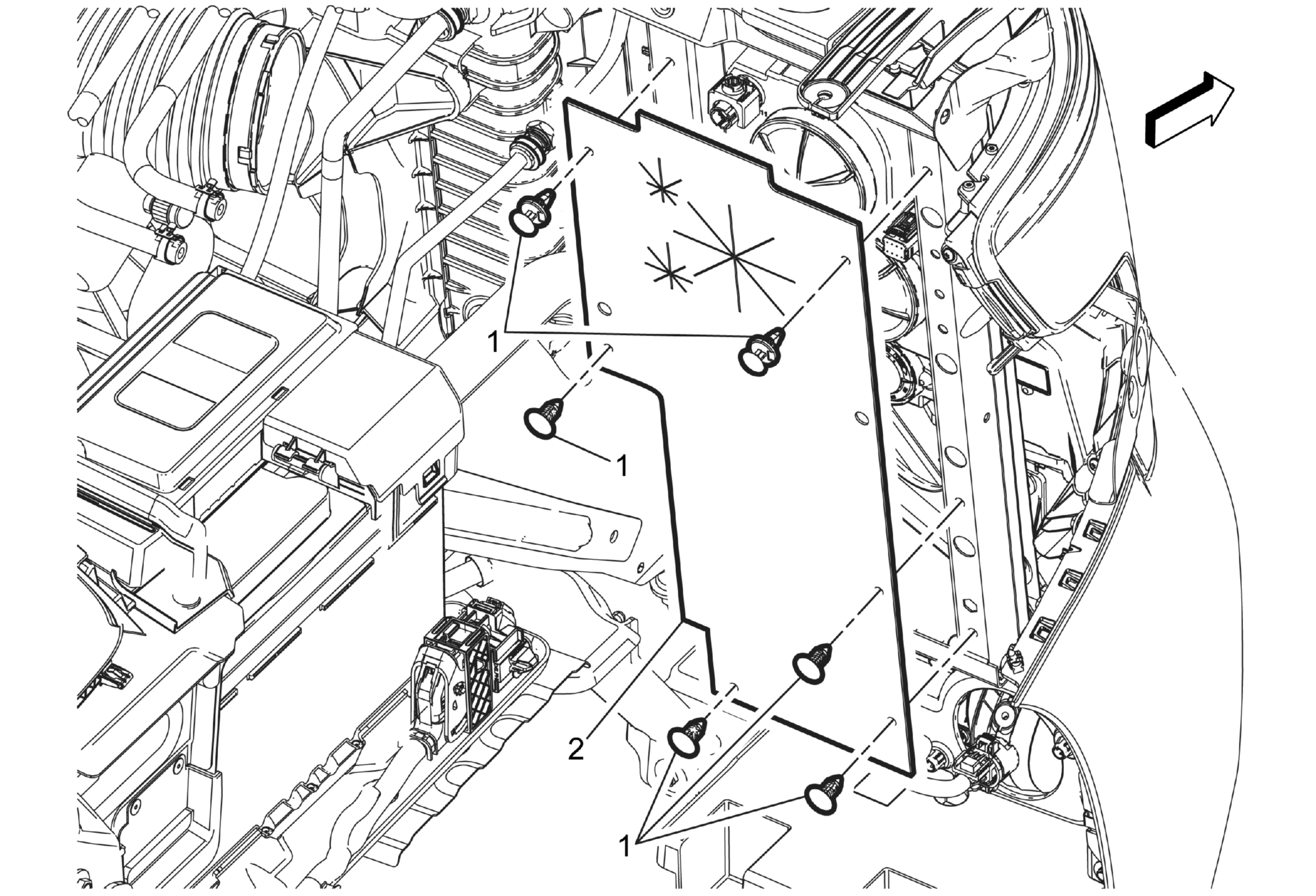

Fig 1: Radiator Air Upper Baffle and Deflector (Right of Radiator L83 L86)
GM3618145Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Air Cleaner Bracket Replacement
  2. Unclip the electrical harness retainer from the radiator air upper baffle and deflector and reposition out of the way.
1 Radiator Air Upper Baffle and Deflector Retainer (Qty: 6)
2 Radiator Air Upper Baffle and Deflector
