Radiator Air Baffle Replacement - Left (L83 L86)

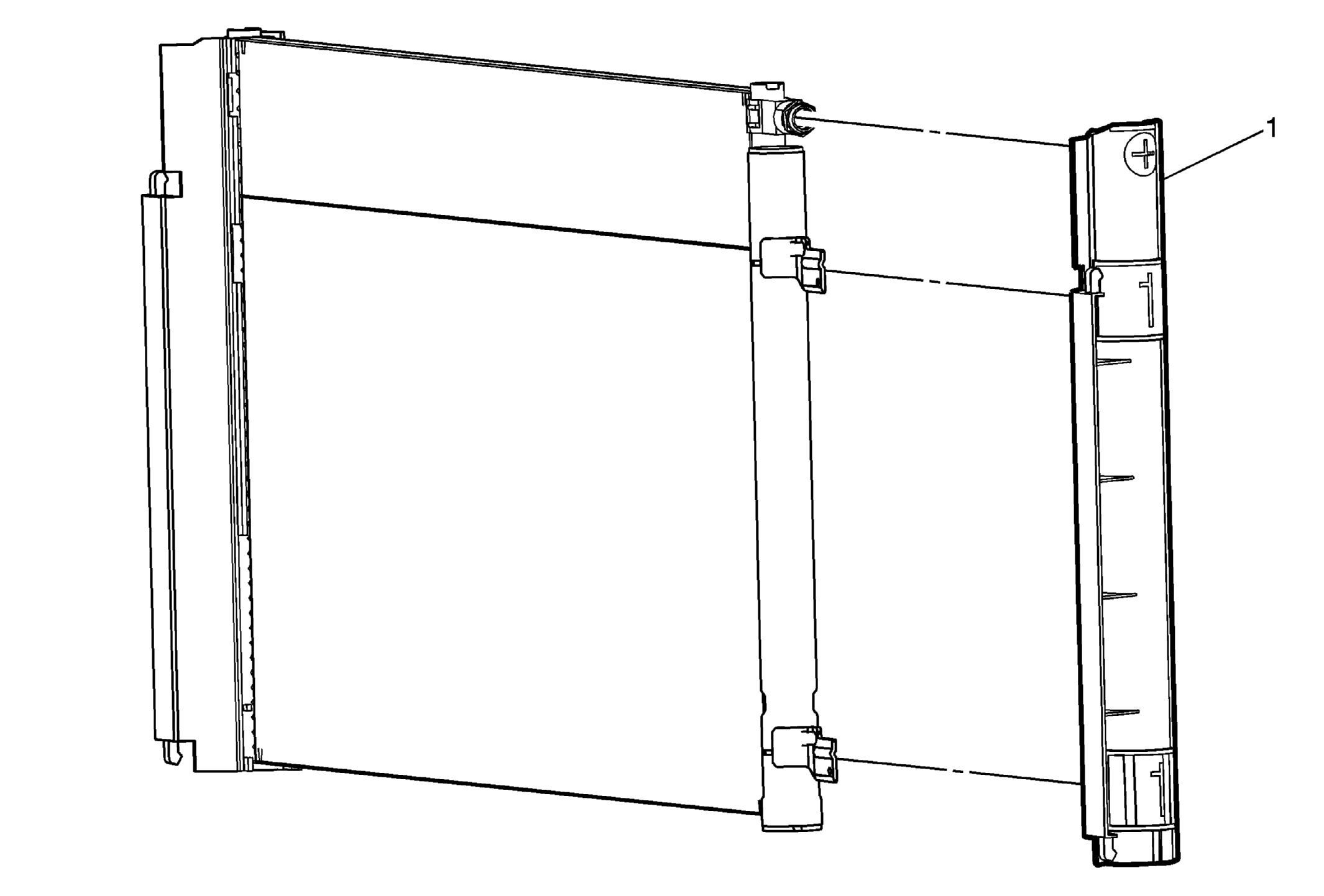

Fig 1: Radiator Air Baffle - Left (L83, L86)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the air conditioning condenser from the vehicle. Refer to Air Conditioning Condenser Replacement (L83 L86) .
1	Radiator Air Baffle Left Procedure  Remove the radiator air baffle left from the radiator air lower baffle and remove from the condenser.
