Instrument Cluster Replacement (Cadillac)

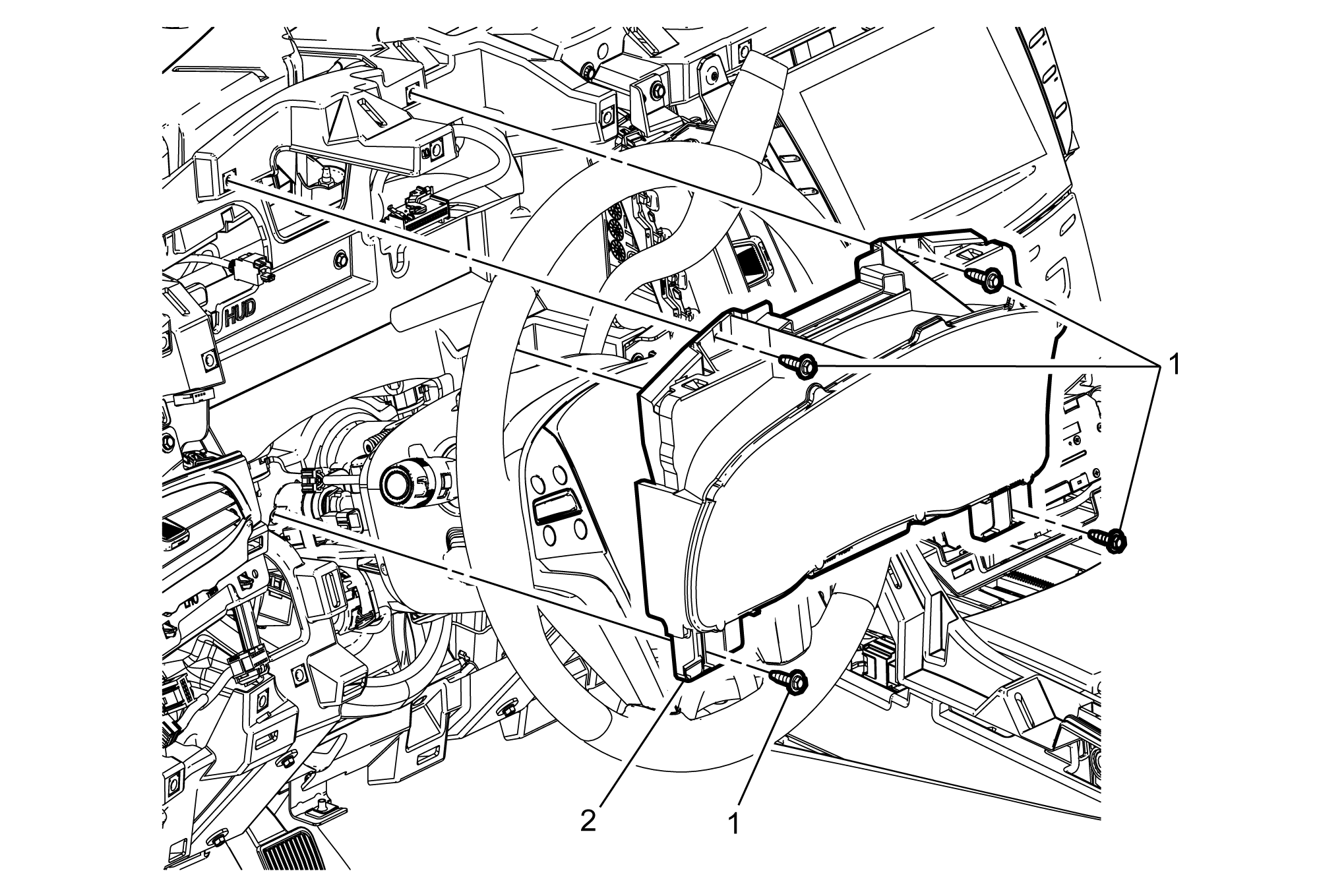

Fig 1: Instrument Cluster (Cadillac)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the instrument panel instrument cluster hood. Refer to Instrument Panel Instrument Cluster Hood Replacement (Cadillac) .
1	Instrument Cluster Fasteners (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Instrument Cluster Assembly Procedure Disconnect the electrical connector. Refer to Control Module References for programming and set up procedures, if required.

Callout

Component Name

Preliminary Procedure
Remove the instrument panel instrument cluster hood. Refer to Instrument Panel Instrument Cluster Hood Replacement (Cadillac) .

Instrument Cluster Fasteners (Qty: 4)

CAUTION:

Tighten
2.5 N.m (22 lb in)

Instrument Cluster Assembly

Procedure

Disconnect the electrical connector.
Refer to Control Module References for programming and set up procedures, if required.
