Rear Seat Frame Outer Finish Cover Replacement

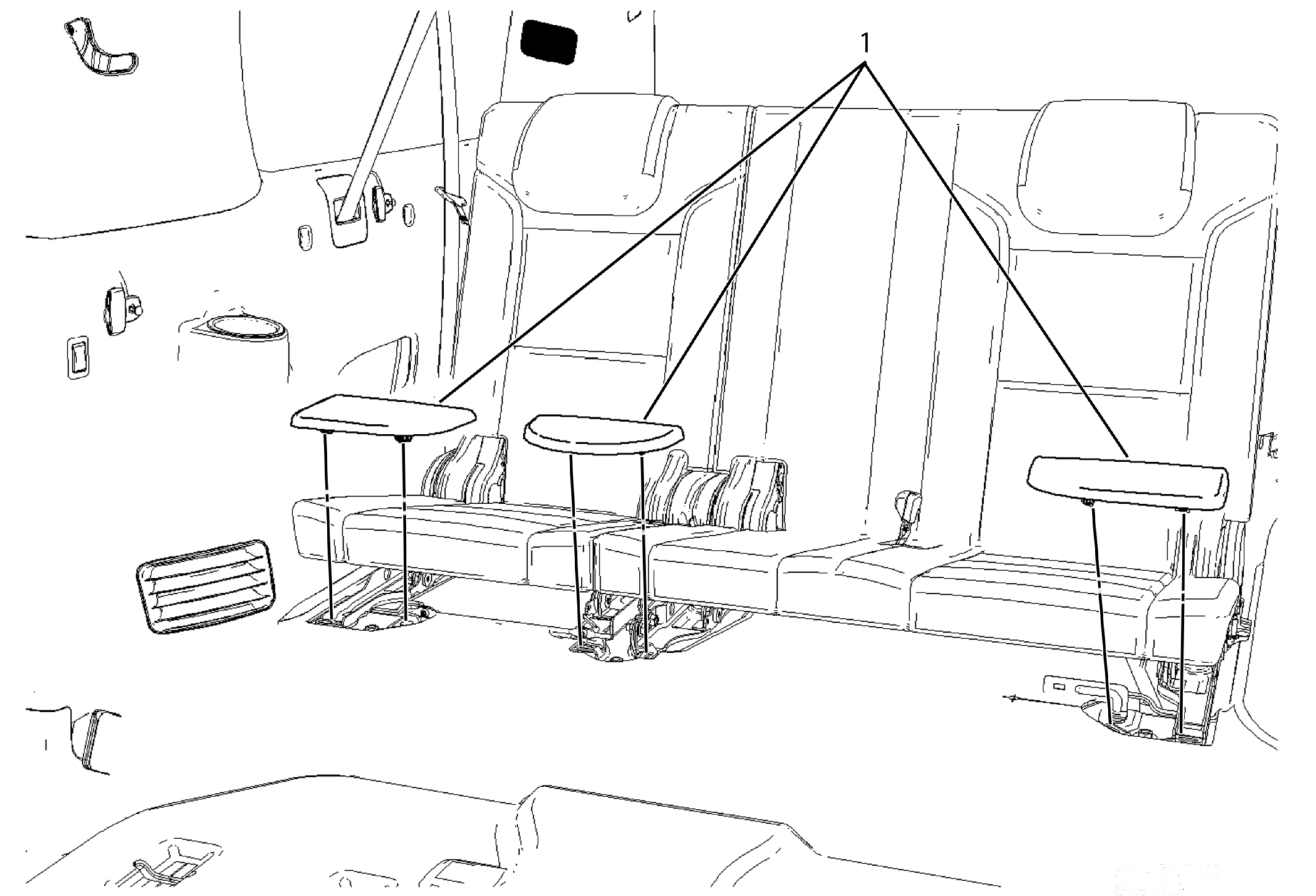

Fig 1: Rear Seat Frame Outer Finish Cover
GM3637728Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Rear Seat Frame Outer Finish Cover
Procedure
Release the 2 clips on each rear seat frame outer finish cover from the 3rd row seat frame.
