Front Seat Recliner Knob Replacement (22 Way Power)

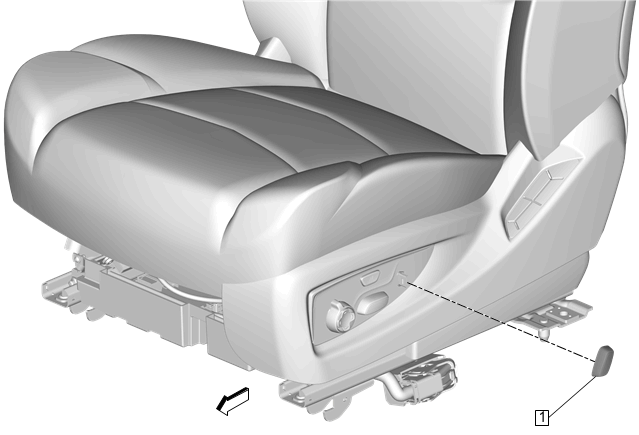

Fig 1: Front Seat Recliner Knob (22 Way Power)
GM3943778Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Front Seat Recliner Knob
Procedure
Use a flat-bladed tool to release the recliner knob from the front seat cushion outer finish cover.
