Front Seat Adjuster Knob Replacement (22-Way Rotary)

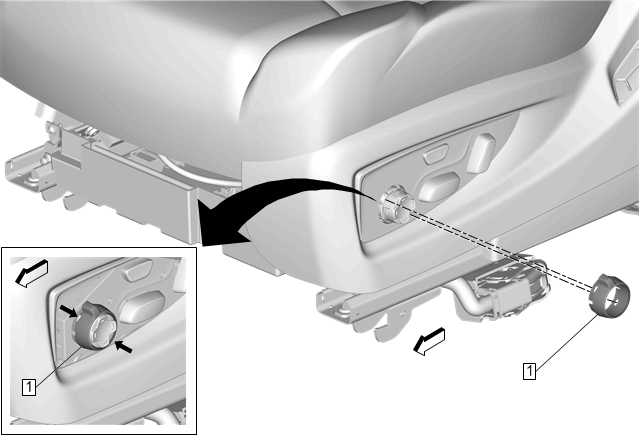

Fig 1: Front Seat Adjuster Knob (22-Way Rotary)
GM3943767Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Front Seat Adjuster Knob
Procedure
Use a flat-bladed tool to push inward on the adjuster tabs to release the knob from the adjust switch and outer finish panel.
