Spare Wheel Heat Shield Replacement

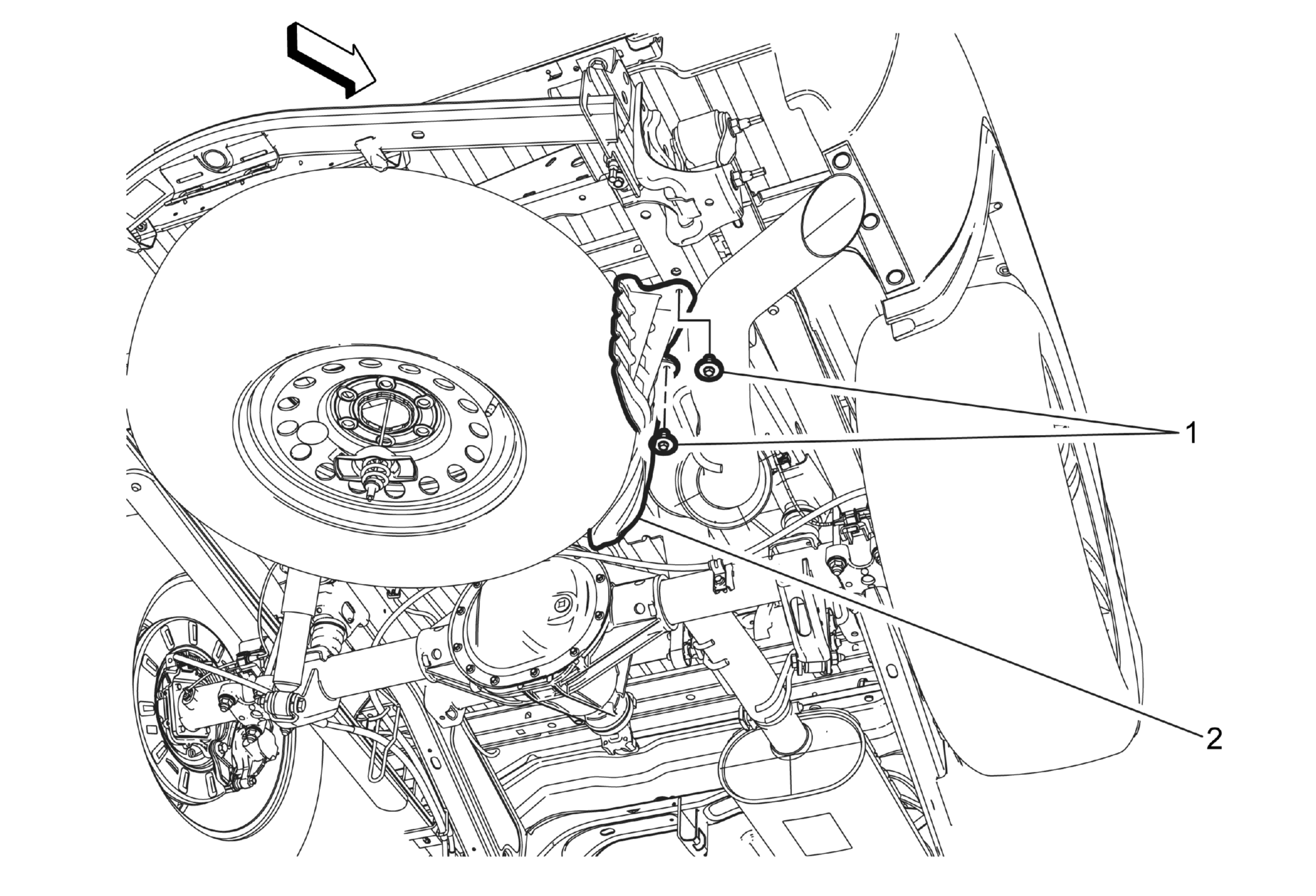

Fig 1: Spare Wheel Heat Shield
GM3613225Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedures
Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
1 Spare Tire Heat Shield Fastener (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
12 N.m (106 lb in)
2 Spare Tire Heat Shield
