Rear Side Door Sill Garnish Molding Replacement
Rear Side Door Sill Garnish Molding Replacement

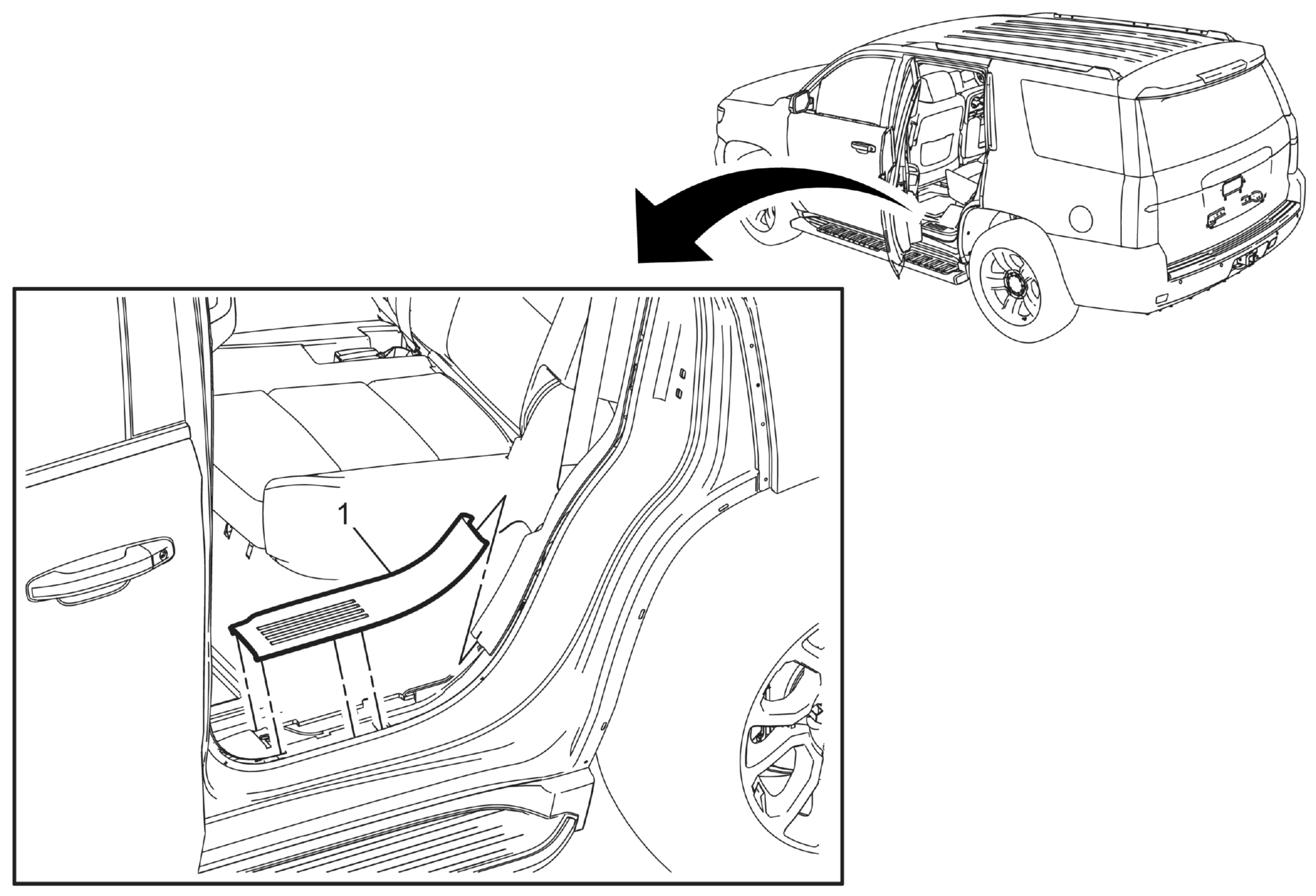

Fig 1: Rear Side Door Sill Garnish Molding
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
1
Rear Side Door Sill Garnish Molding Assembly
Procedure
Use the appropriate plastic trim tool to aid in the removal of the rear side door sill garnish molding.
