Rear Compartment Floor Stowage Trim Compartment Replacement (Standard Wheelbase)

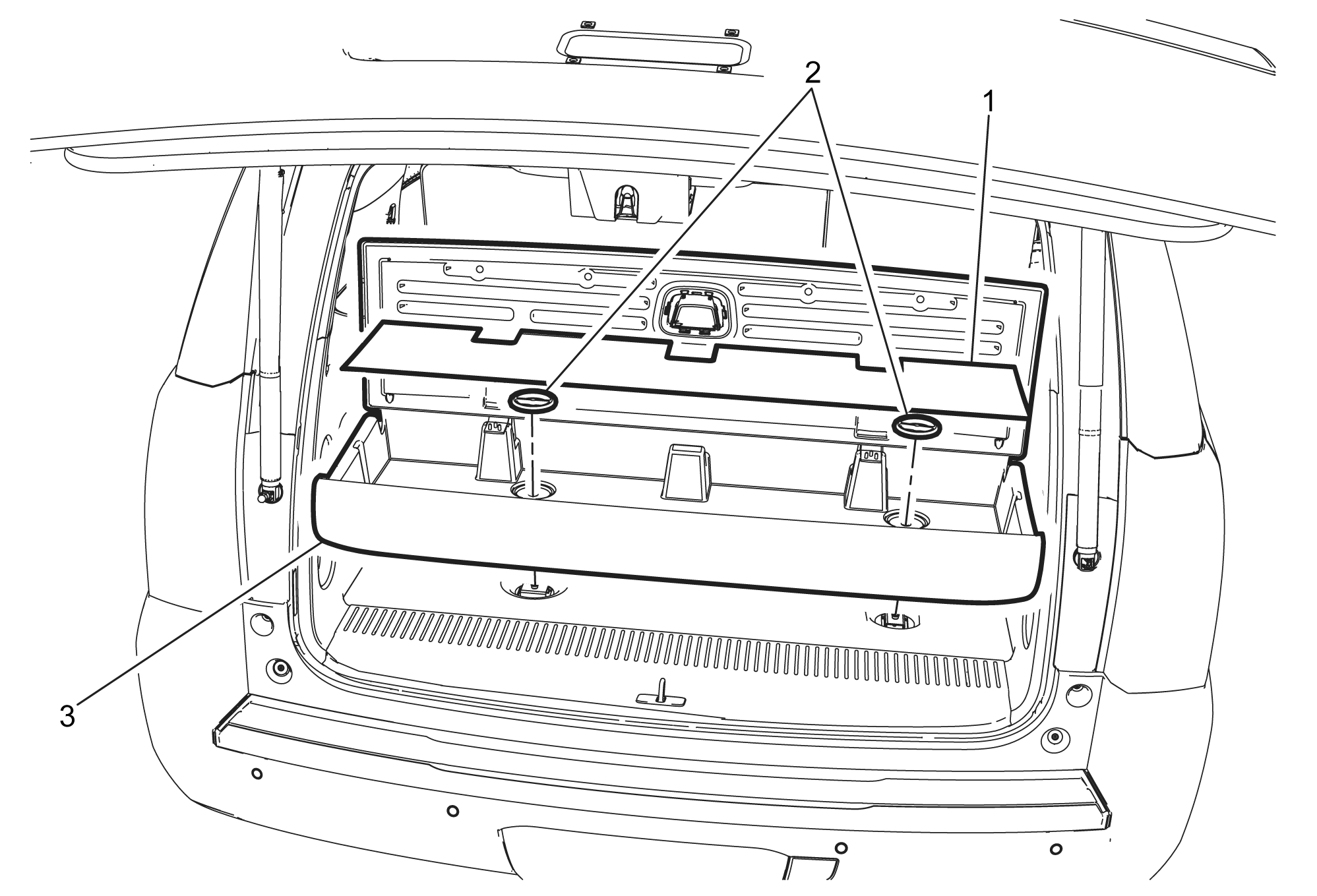

Fig 1: Rear Compartment Floor Stowage Trim Compartment (Standard Wheelbase)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the luggage shade. Refer to Luggage Shade Replacement .
1	Cargo Center Mat
2	Rear Compartment Floor Stowage Trim Retainer (Qty: 2)
3	Rear Compartment Floor Stowage Trim Compartment Assembly Procedure Open liftgate to full open position. Open rear compartment floor stowage cover.
