Liftgate Sill Garnish Molding Replacement

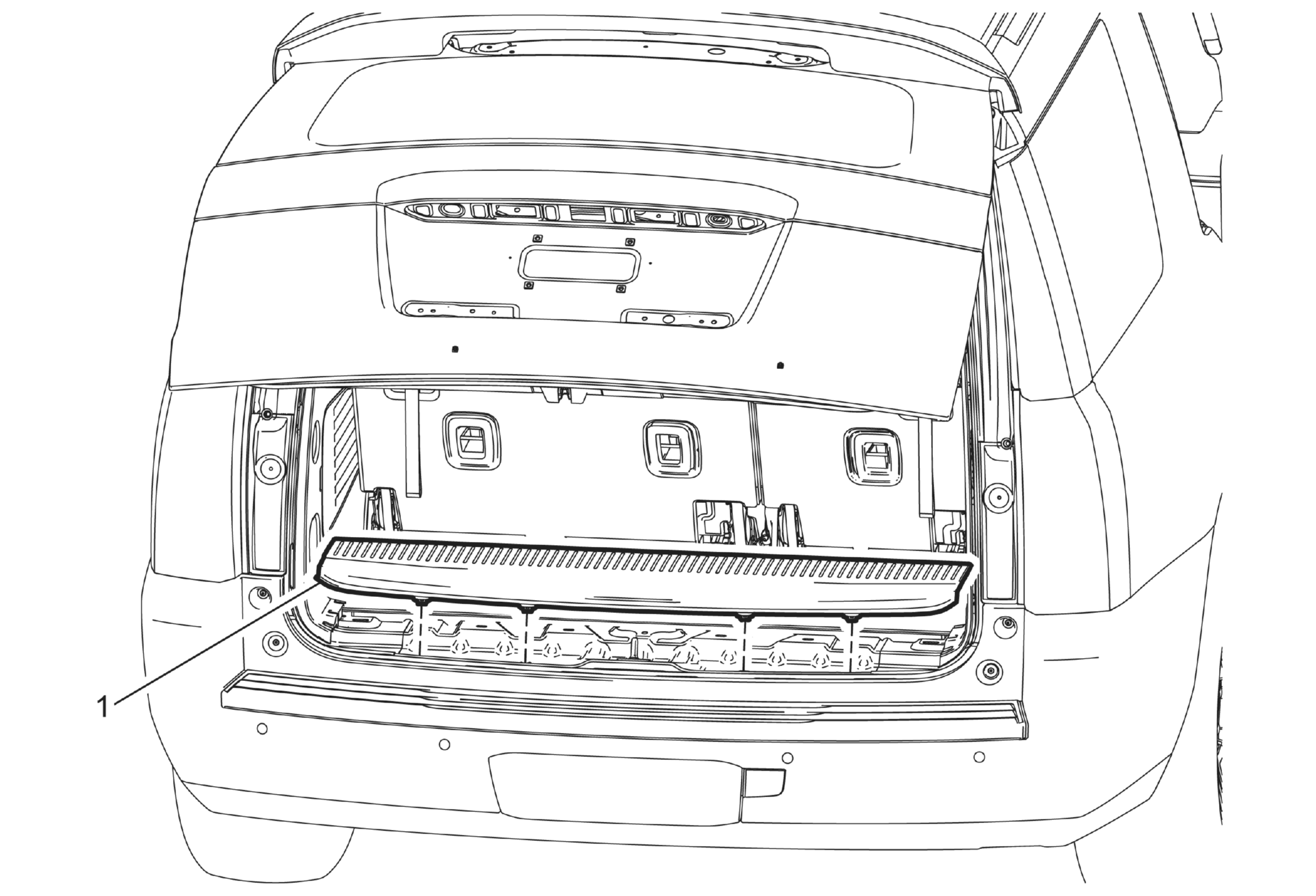

Fig 1: Liftgate Sill Garnish Molding
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
1
Liftgate Sill Garnish Molding Assembly
Procedure
Grasp and gently pull up on the liftgate sill garnish molding in order to release the integral retaining clips.
