Instrument Panel Upper Trim Panel Bracket Replacement (Cadillac)

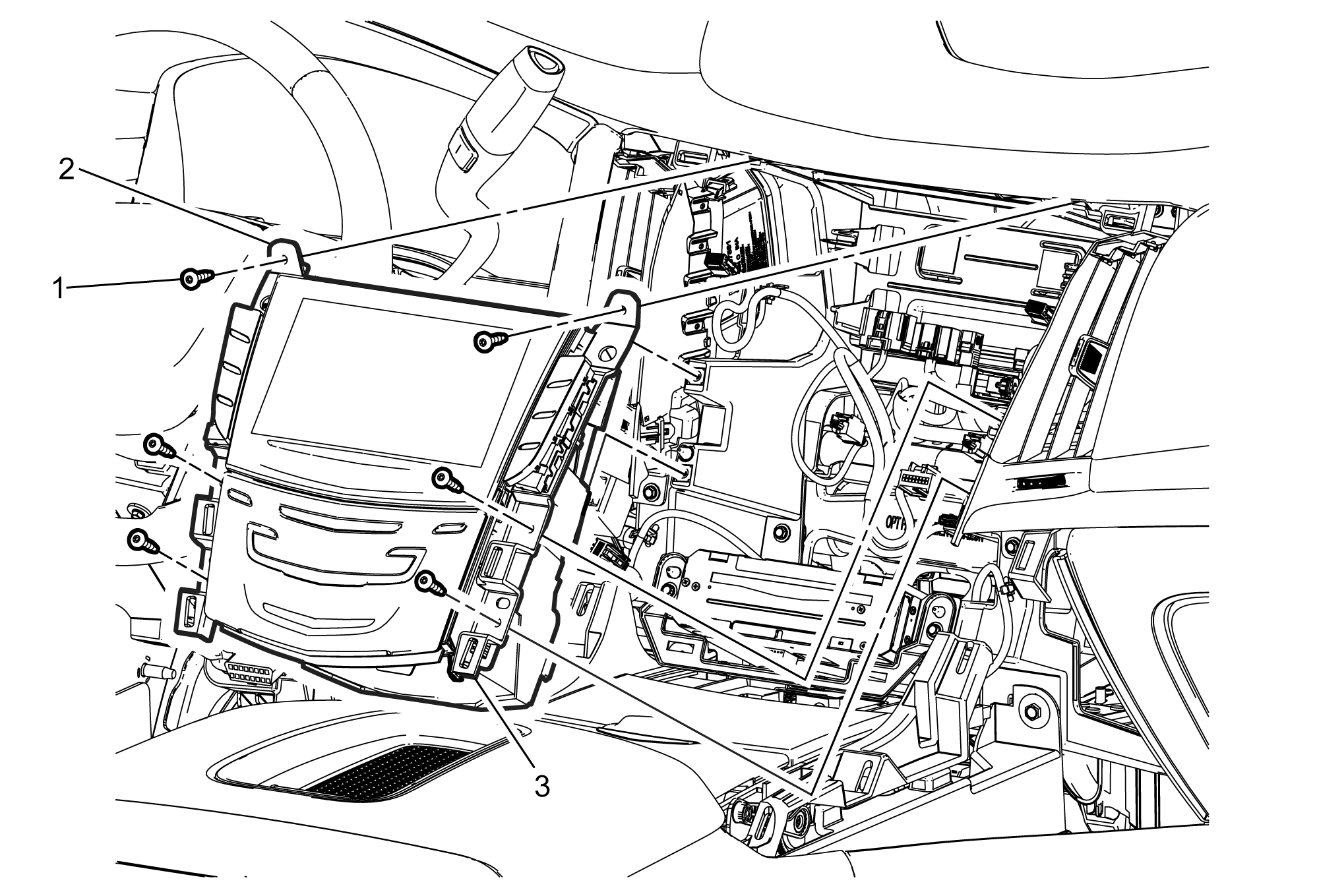

Fig 1: Instrument Panel Upper Trim Panel Bracket (Cadillac)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the instrument panel lower trim plate applique. Refer to Instrument Panel Lower Trim Plate Applique Replacement (Cadillac) .
1	Instrument Panel Center Support Bracket Bolt (Qty: 6) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Instrument Panel Upper Trim Panel Bracket - Left Procedures Disconnect all electrical connectors. Remove the Radio Control Assembly. Refer to Radio Control Assembly Replacement (Cadillac) . Transfer components as necessary.
3	Instrument Panel Upper Trim Panel Bracket - Right Procedure Transfer components as necessary.
