Instrument Panel Compartment Access Hole Cover Replacement (Chevrolet/GMC)

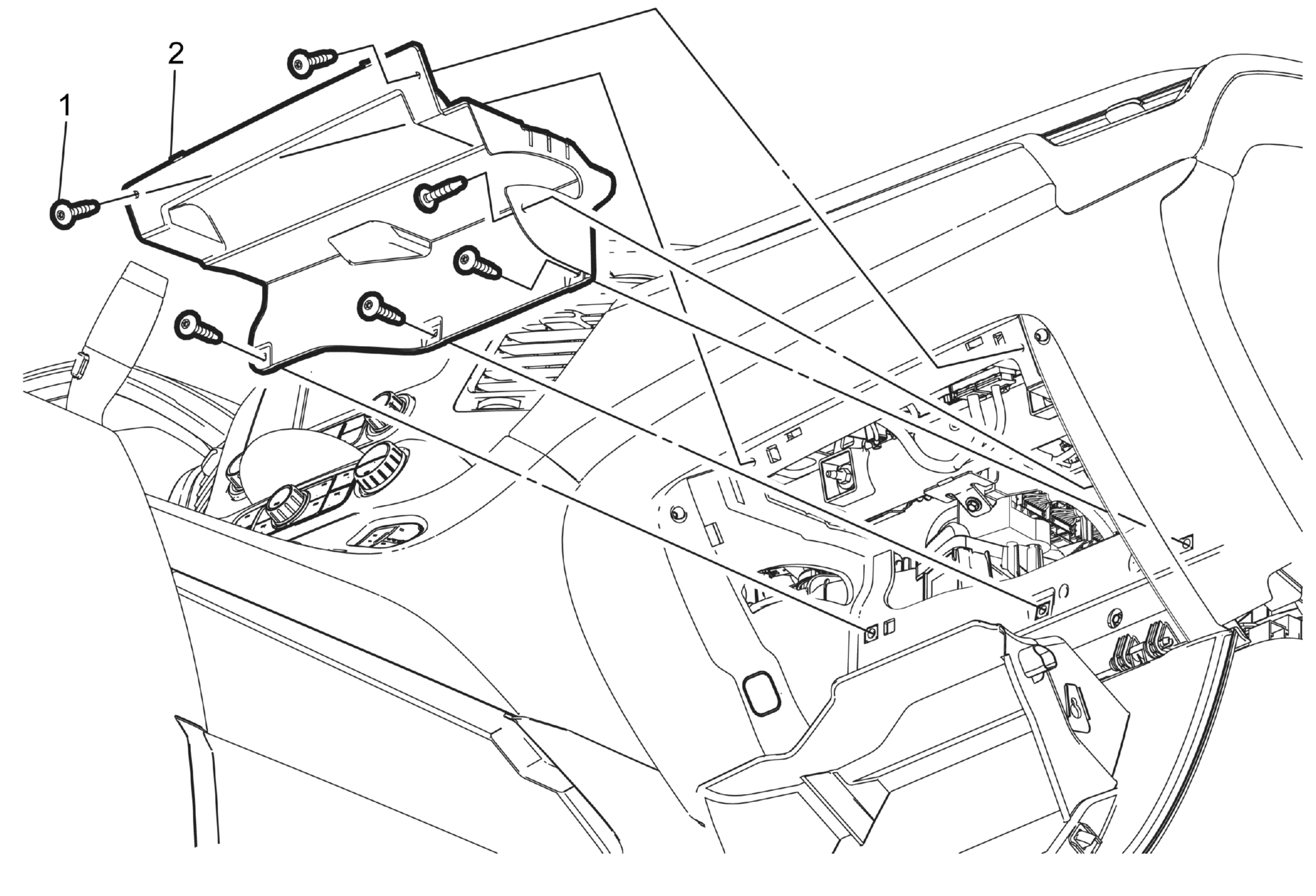

Fig 1: Instrument Panel Compartment Access Hole Cover (Chevrolet/GMC)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Release the instrument panel compartment door strut. Refer to Instrument Panel Compartment Door Replacement (Chevrolet/GMC) . Squeeze the sides of the instrument panel compartment assembly allowing the compartment to open past the stops.
1	Instrument Panel Compartment Bolt (Qty: 6) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Instrument Panel Compartment Access Hole Cover

Callout

Component Name

Preliminary Procedures

Release the instrument panel compartment door strut. Refer to Instrument Panel Compartment Door Replacement (Chevrolet/GMC) .
Squeeze the sides of the instrument panel compartment assembly allowing the compartment to open past the stops.

Instrument Panel Compartment Bolt (Qty: 6)

CAUTION:

Tighten
2.5 N.m (22 lb in)

Instrument Panel Compartment Access Hole Cover
