Front Floor Console Front Compartment Replacement (Chevrolet/GMC)

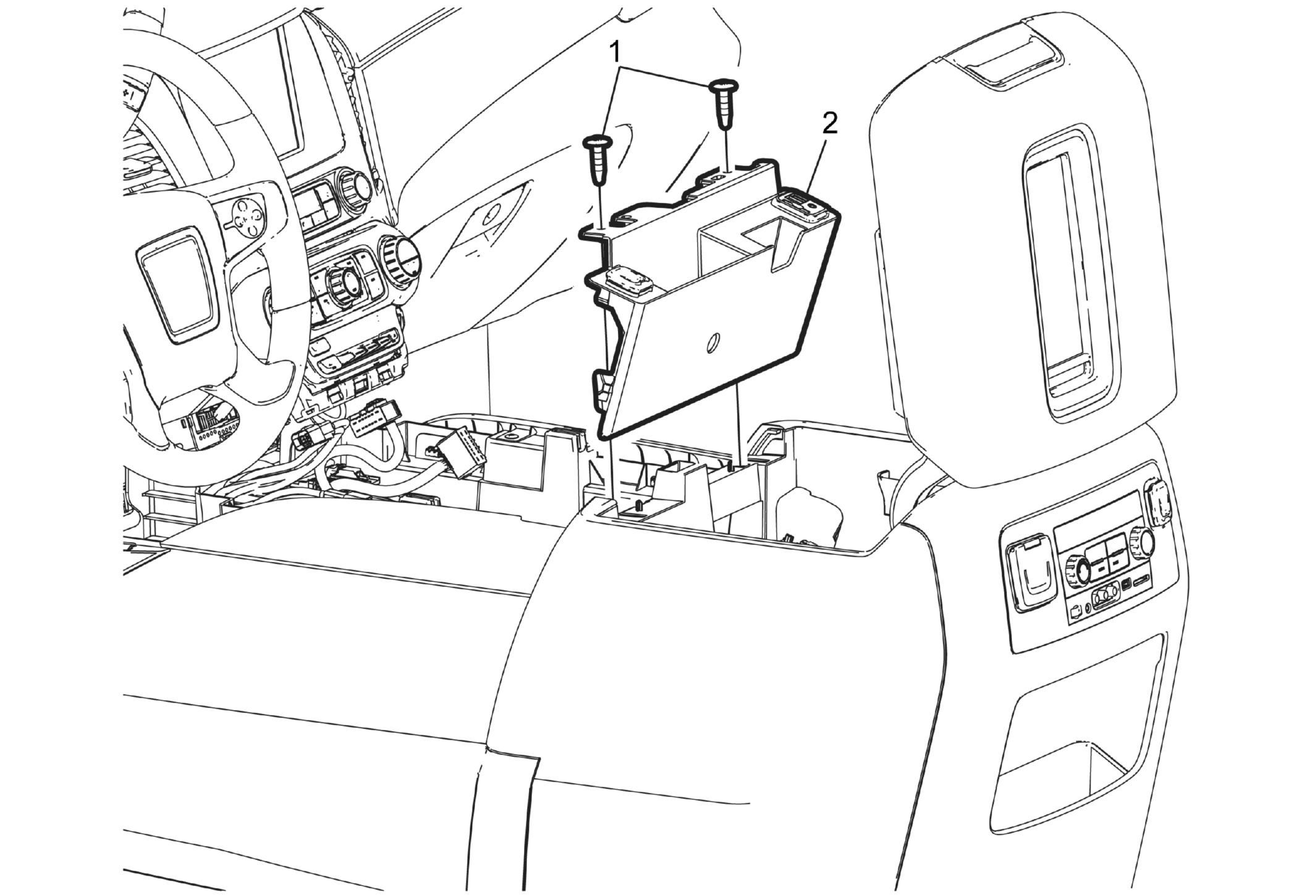

Fig 1: Front Floor Console Front Compartment (Chevrolet/GMC)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front floor console trim plate. Refer to Front Floor Console Trim Plate Replacement (Chevrolet/GMC) .
1	Front Floor Console Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Front Floor Console Front Compartment Procedures Use a flat bladed plastic trim tool in order to release the tabs securing the sides of the compartment to the front floor console assembly. Disconnect all electrical connectors. Transfer components as necessary.

Callout

Component Name

Preliminary Procedure
Remove the front floor console trim plate. Refer to Front Floor Console Trim Plate Replacement (Chevrolet/GMC) .

Front Floor Console Bolt (Qty: 2)

CAUTION:

Tighten
2.5 N.m (22 lb in)

Front Floor Console Front Compartment

Procedures

Use a flat bladed plastic trim tool in order to release the tabs securing the sides of the compartment to the front floor console assembly.
Disconnect all electrical connectors.
Transfer components as necessary.
