Front Compartment Front Sight Shield Replacement (Chevrolet)
Front Compartment Front Sight Shield Replacement (Chevrolet)

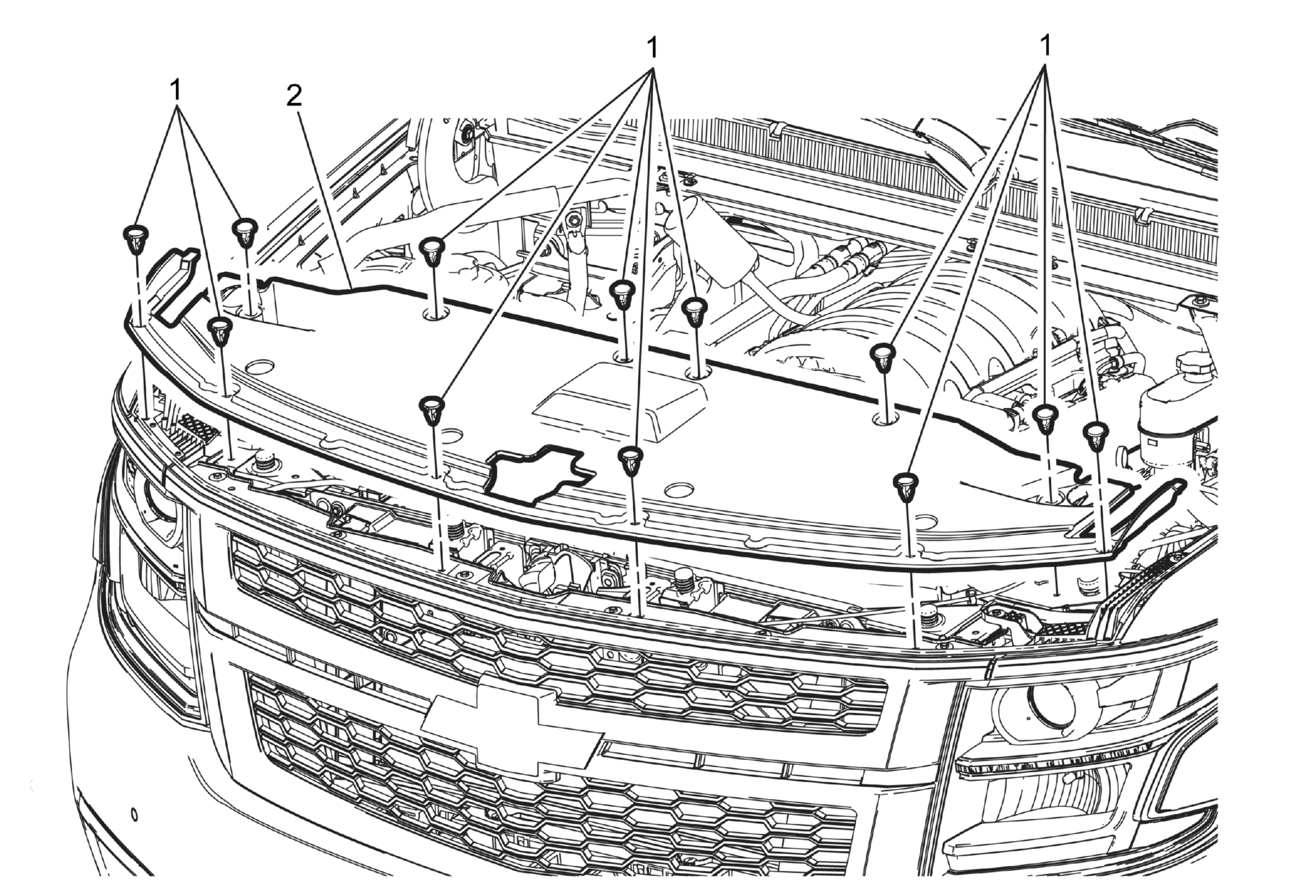

Fig 1: Front Compartment Front Sight Shield (Chevrolet)
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
1
Front Compartment Front Sight Shield Push-In Retainer (Qty: 12)
2
Front Compartment Front Sight Shield
