Front Bumper Shutter Replacement (Lower)

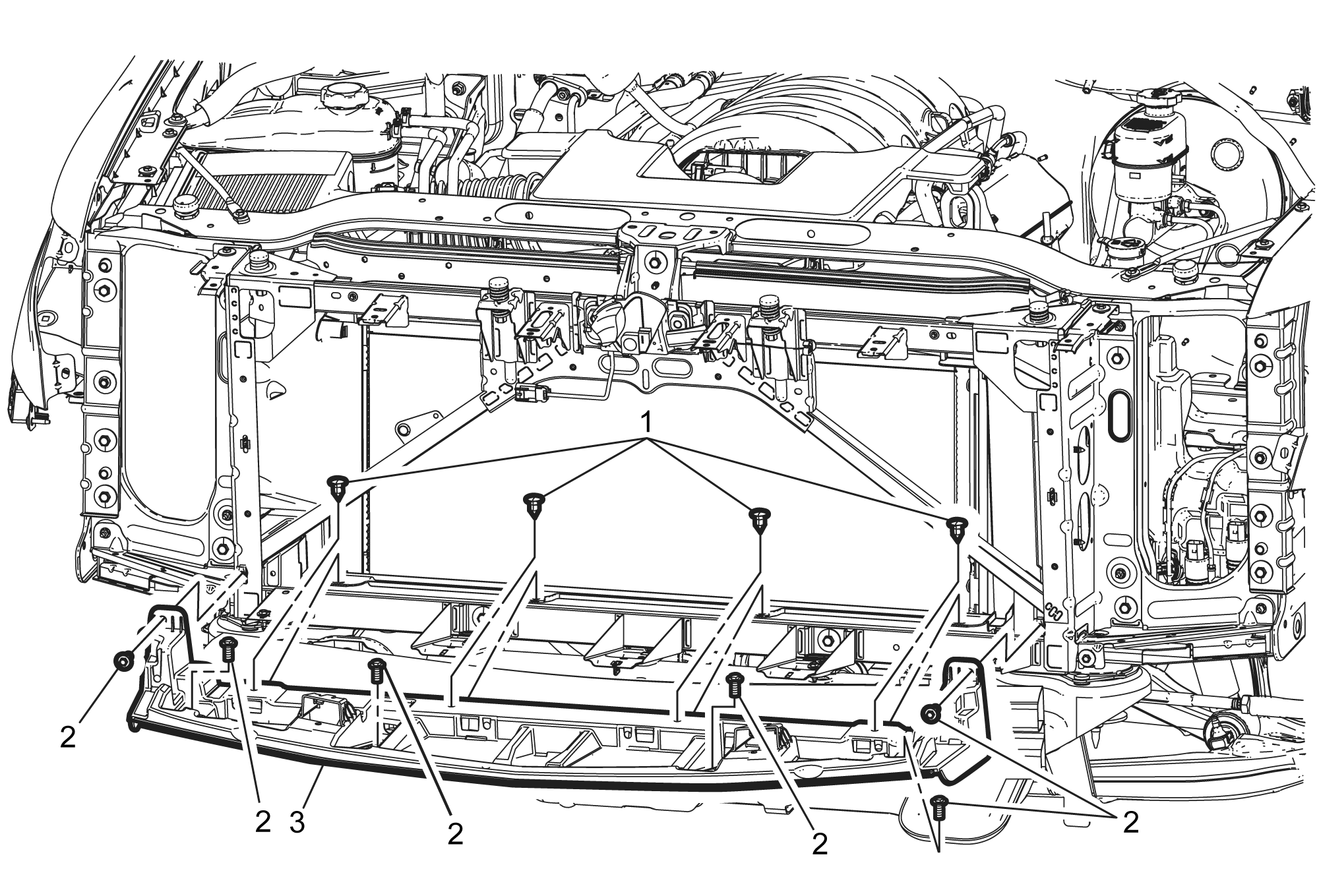

Fig 1: Front Bumper Shutter (Lower)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement (GMC) Front Bumper Fascia Replacement (Chevrolet) Front Bumper Fascia Replacement (Cadillac) . Remove the front bumper shutter upper. Refer to Front Bumper Shutter Replacement (Upper) Front Bumper Shutter Replacement (Lower) Front Bumper Shutter Replacement (Mechanical, Cadillac)
1	Front Bumper Shutter Lower Retainer (Qty 4)
2	Front Bumper Shutter Lower Bolt (Qty: 6) CAUTION: Refer to Fastener Caution . Tighten 6 N.m (53 lb in)
3	Front Bumper Shutter Lower
