Liftgate Strut Bracket Replacement

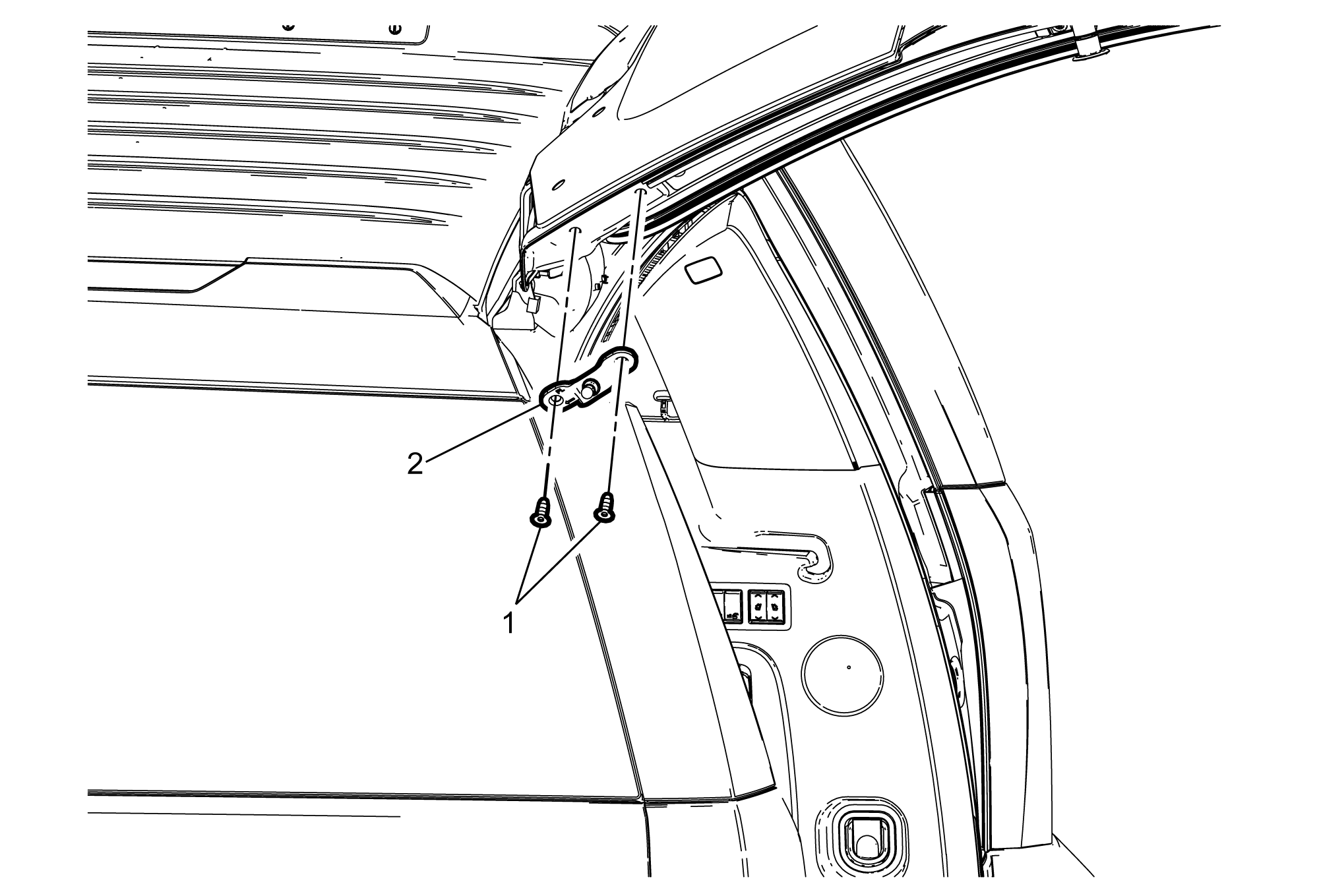

| Callout | Component Name |
|---|---|
| 1 | Liftgate Strut Bracket Bolt (Qty: 2)
WARNING:
When a lift gate hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury.
CAUTION:
Refer to Fastener Caution . Tighten 22 N.m (16 lb ft) |
| 2 | Liftgate Strut Bracket Procedure Disconnect the strut support rod or liftgate power assist actuator from the liftgate strut bracket. Reposition and secure out of the way. |
