Liftgate Hinge Pin Retainer Replacement

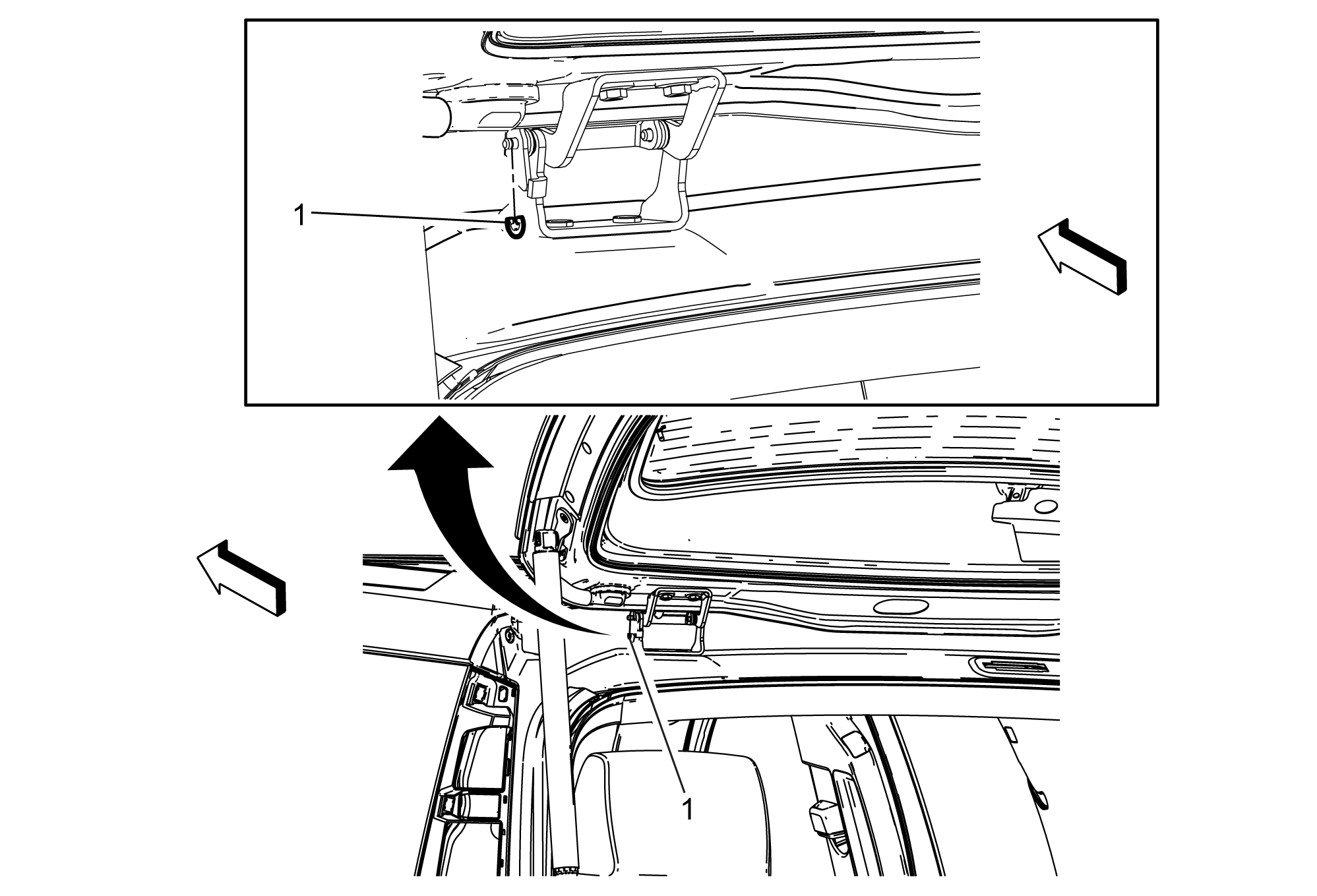

Fig 1: Liftgate Hinge Pin Retainer
GM3608371Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Open the liftgate
1 Liftgate Hinge Pin Retainer
Procedure
Remove the liftgate hinge pin retainer from the liftgate hinge pin.
