Front Compartment Front Sight Shield Replacement (GMC)
Front Compartment Front Sight Shield Replacement (GMC)

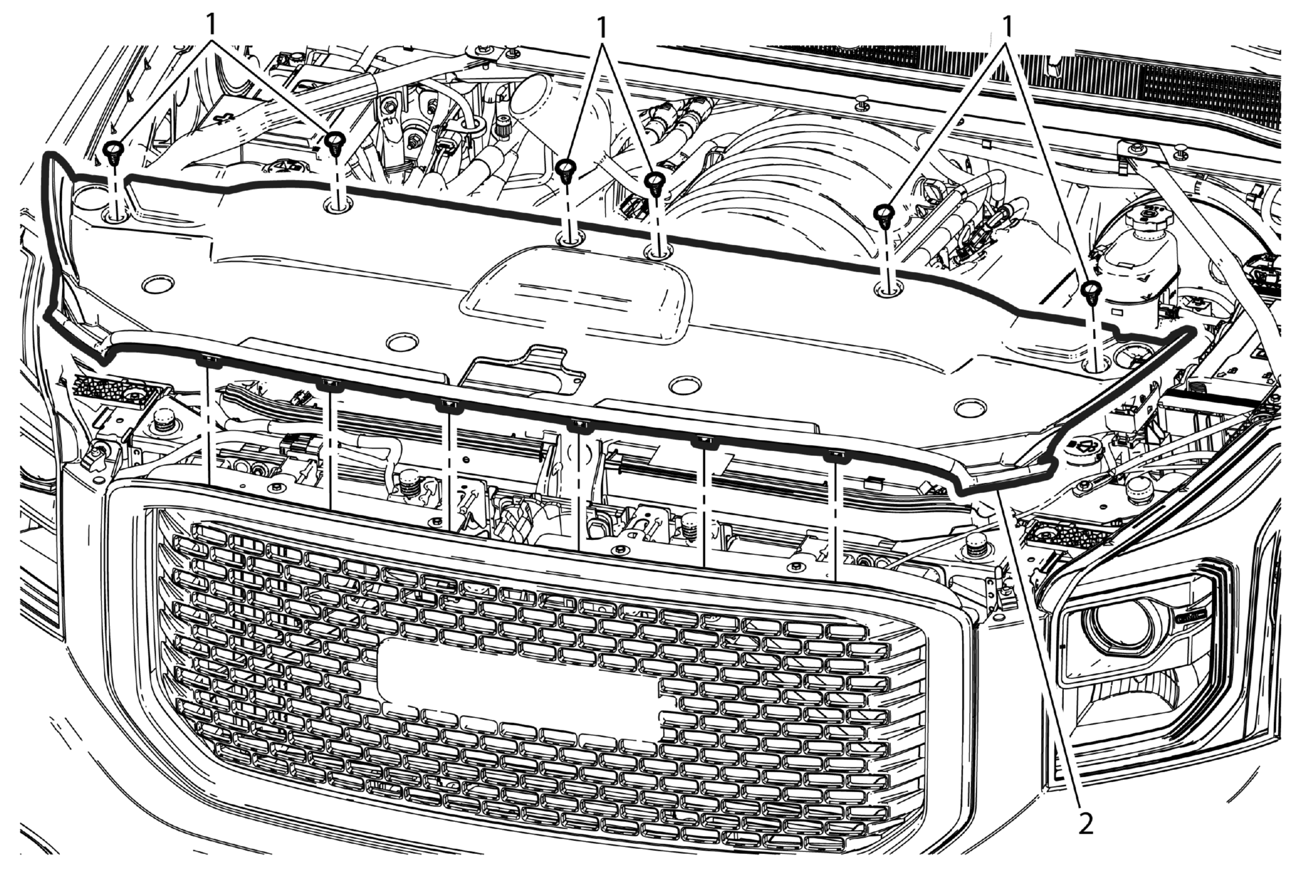

Fig 1: Front Compartment Front Sight Shield (GMC)
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
1
Front Compartment Front Sight Shield Push-In Retainer (Qty: 6)
2
Front Compartment Front Sight Shield
Procedure
Using a trim type tool release the front tab retainers.
