Preliminary Procedure
Open the hood. |

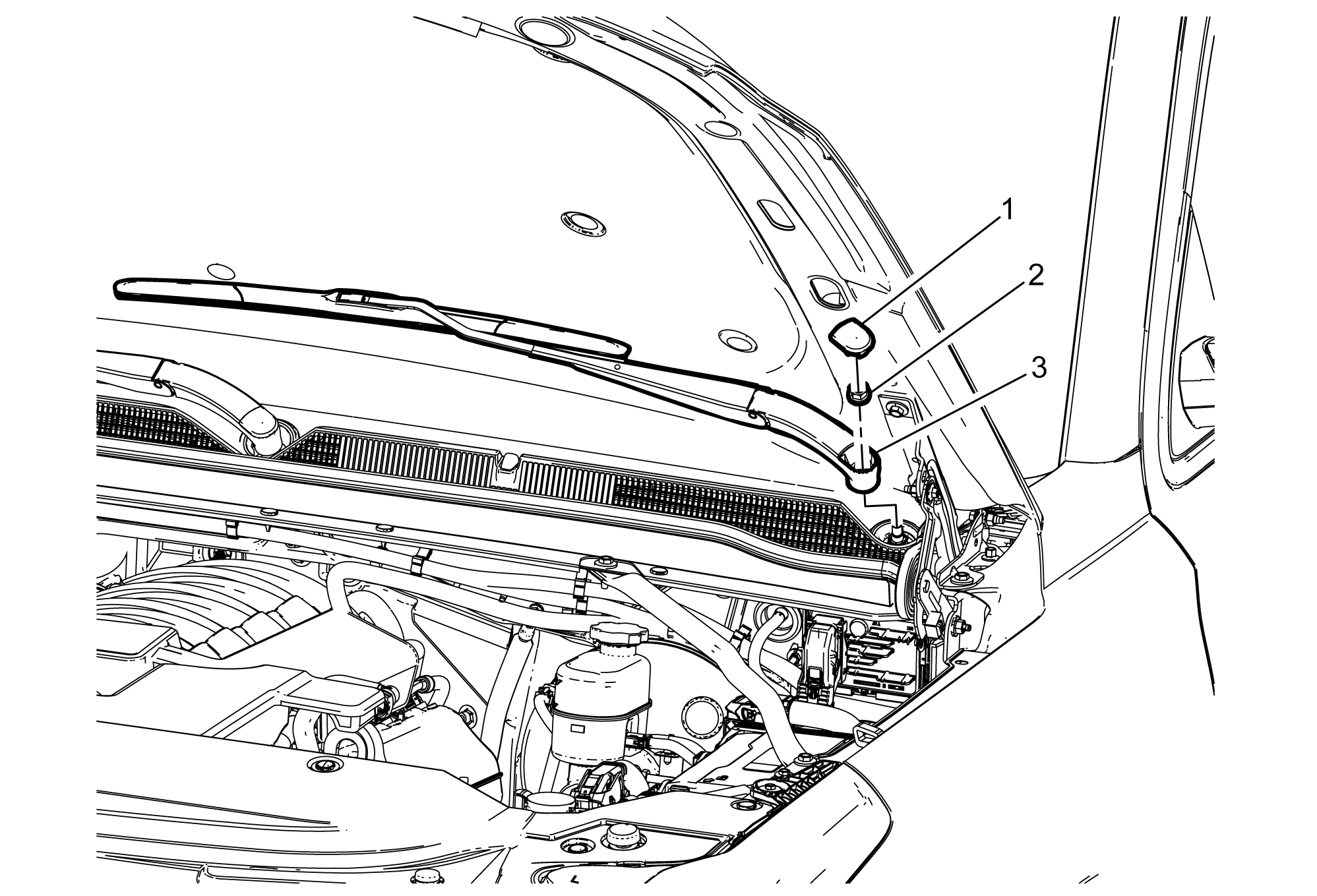

| 1 |
Windshield Wiper Arm Nut Cap
NOTE:
Using a small flat-bladed tool, lift up on rearward end of cap to disengage the finish cap from the wiper arm assembly.
|
| 2 |
Windshield Wiper Arm Nut
Tighten
40 N.m (30 lb ft) |
| 3 |
Windshield Wiper Arm Procedure
- Grasp the windshield wiper arm near the pivot shaft and gently rock it side to side until the arm releases.
- If the wiper arm does not release, use a suitable tool, pull and remove the windshield wiper arm from the windshield wiper transmission pivot shaft.
- Clean the pivot shaft knurls with a soft wire brush before installing a new windshield wiper arm.
- Transfer all necessary components.
- Grasp the rear of the wiper arm and place the arm over the pivot shaft.
- Align the tip of the wiper blade to the small transparent circle in the lower center of the blackout area.
- Install the windshield wiper arm nut.
- Hold the wiper arm in position and torque the wiper arm nut as specified above.
- Cycle the wiper arm with a spray of solvent, PARK the wiper arm and re-check the alignment of the wiper blade tip to the windshield transparent circle.
|
