Headlamp Replacement (Chevrolet)

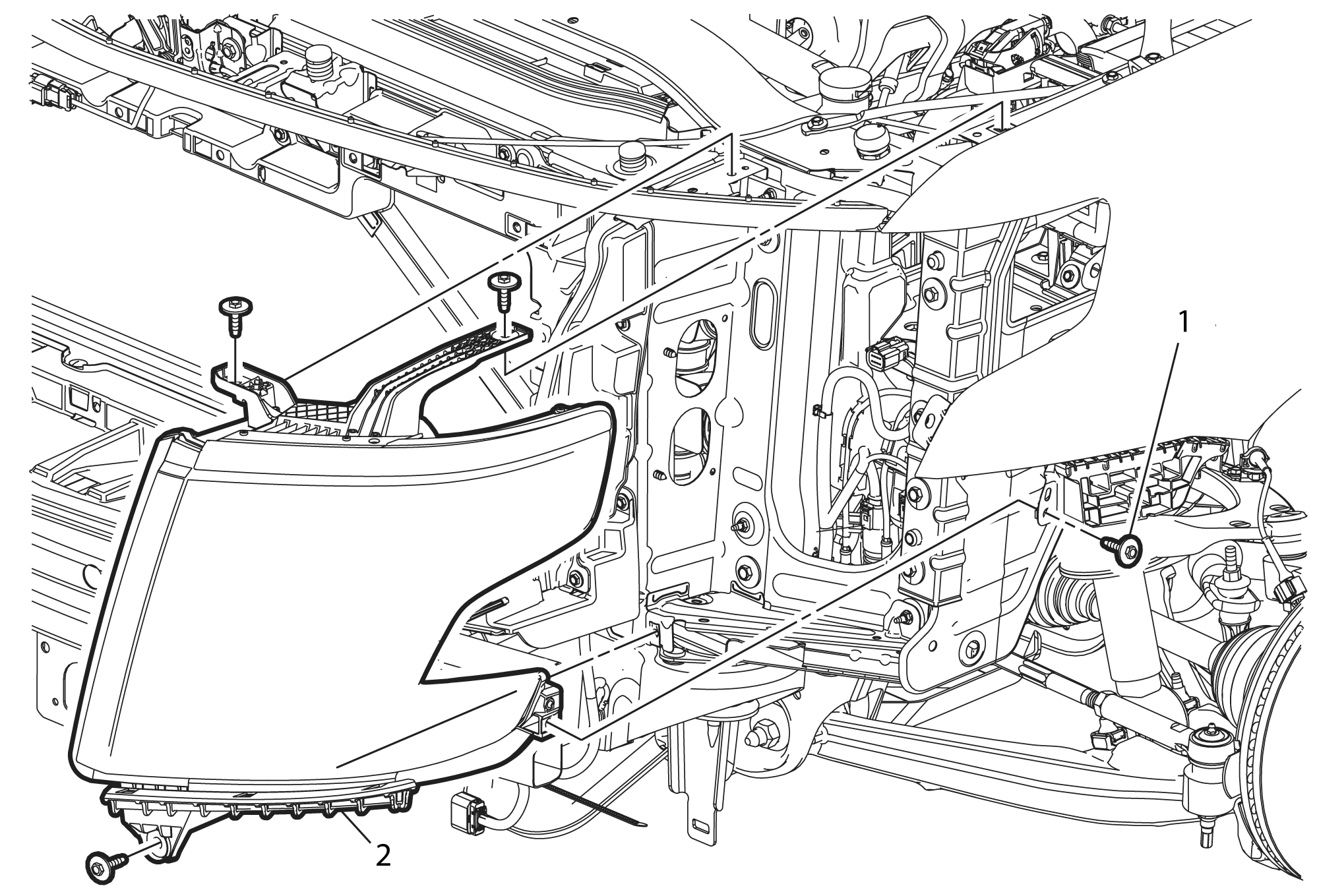

Fig 1: Headlamp (Chevrolet)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement (Chevrolet) .
1	Headlamp Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 7 N.m (62 lb in)
2	Headlamp Procedure Disconnect the electrical connector. Pull straight out to disengage locating tab. Aim the headlamp after replacement. Refer to Headlamp Aiming .

Callout

Component Name

Preliminary Procedure
Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement (Chevrolet) .

Headlamp Bolt (Qty: 4)

CAUTION:

Tighten
7 N.m (62 lb in)

Headlamp

Procedure
