Forward Range Radar Bracket Replacement (Cadillac With AVF)

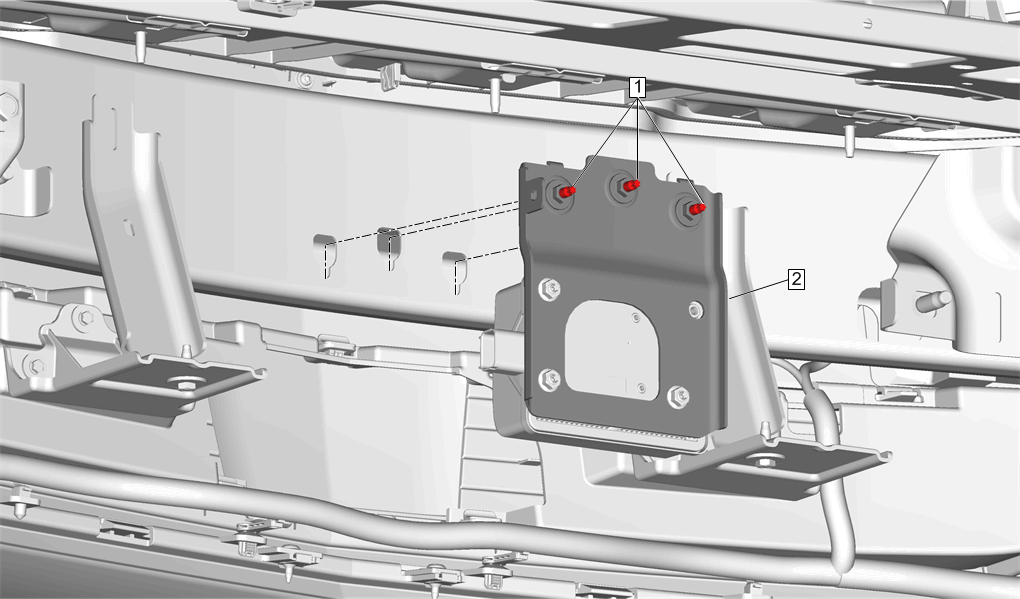

Fig 1: Forward Range Radar Bracket (Cadillac With AVF)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Forward Range Radar Bracket Bolt (Qty: 3) CAUTION: Refer to Fastener Caution Procedure Using the appropriate tool on the pilot end of the bolt, loosen the bolts. Tighten 9 N.m (80 lb in)
2	Forward Range Radar Module Bracket Procedure Disconnect the electrical connector. Transfer components as necessary.

Callout

Component Name

Forward Range Radar Bracket Bolt (Qty: 3)

CAUTION:

Procedure
Using the appropriate tool on the pilot end of the bolt, loosen the bolts.
Tighten
9 N.m (80 lb in)

Forward Range Radar Module Bracket

Procedure
