Charge Air Bypass Valve Replacement - Right Side (LF3)

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

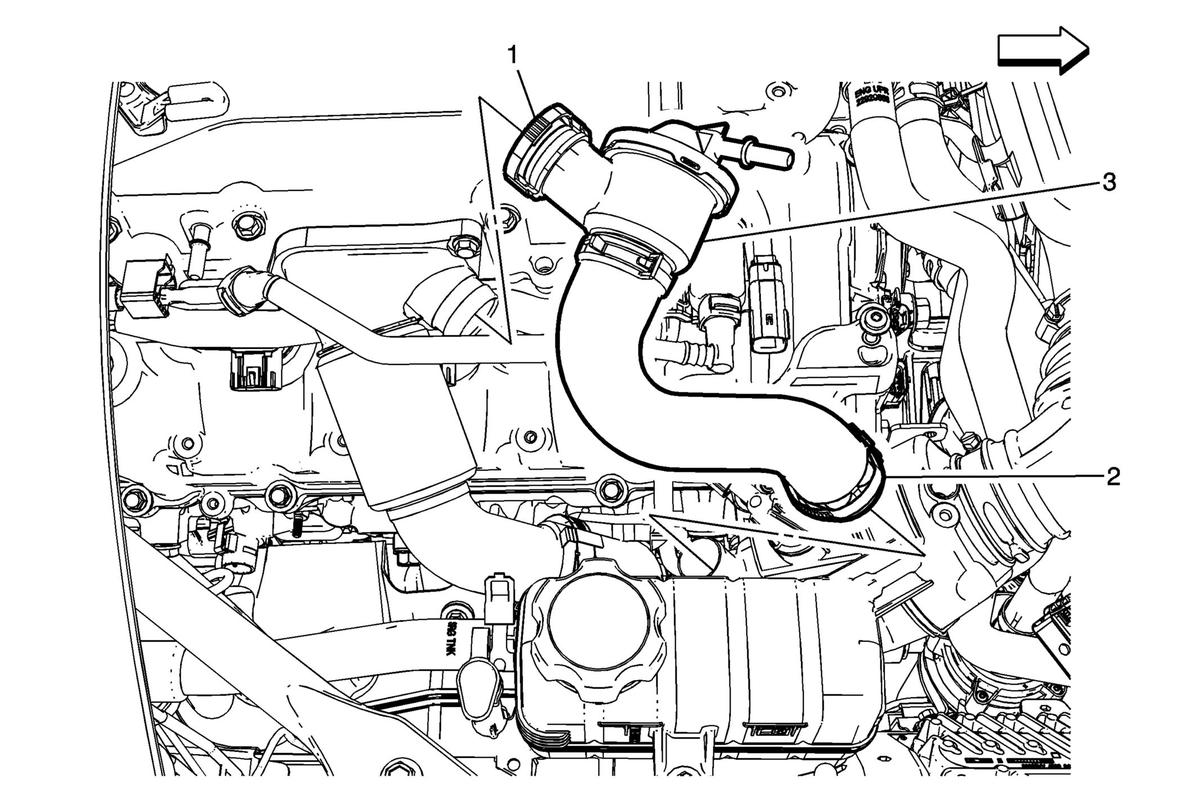

Callout	Component Name
Preliminary Procedure Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement (LF3) . Disconnect vacuum line from charge air bypass valve. Refer to Plastic Collar Quick Connect Fitting Service . Remove the radiator surge tank nut, inlet hose, and wiring harness retainer. Radiator Surge Tank Replacement (LF3)
1	Charge Air Bypass Valve Quick Disconnect Procedure Disconnect the quick connect fitting by squeezing both ends.
2	Charge Air Bypass Valve Clamp CAUTION: Refer to Fastener Caution .
3	Charge Air Bypass Valve
