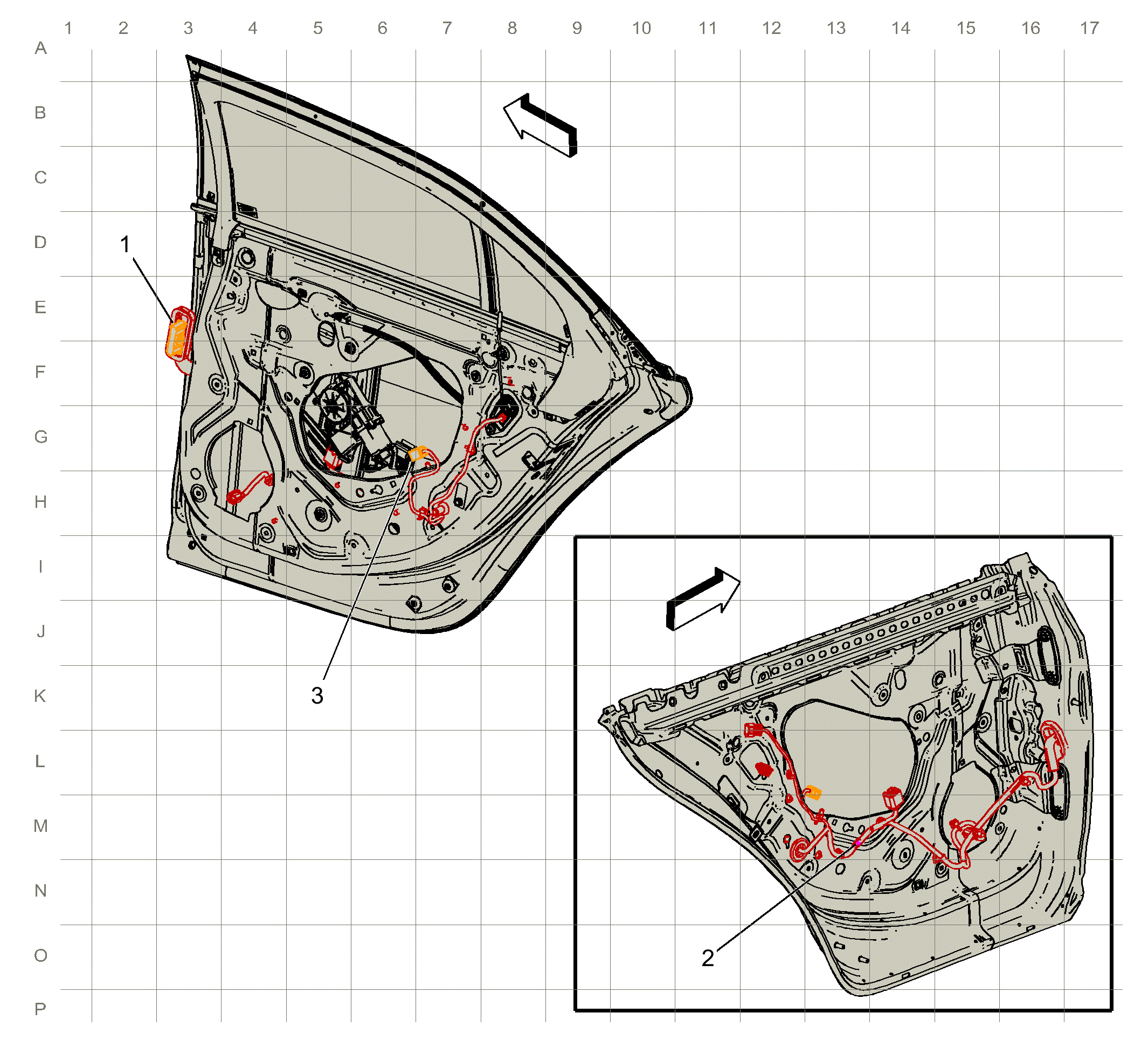

Right Rear Door Harness Routing

GM3454893Courtesy of GENERAL MOTORS COMPANY
Items
1. X800 Right Rear Door Harness to Body Harness (26 Cavities) X800 Right Rear Door Harness to Body Harness
2. J800 Right Rear Door Harness
3. X805 Right Rear Door Harness to Right Rear Door Trim Harness (8 Cavities) X805 Right Rear Door Harness to Right Rear Door Trim Harness
