Rear Fascia Harness Routing

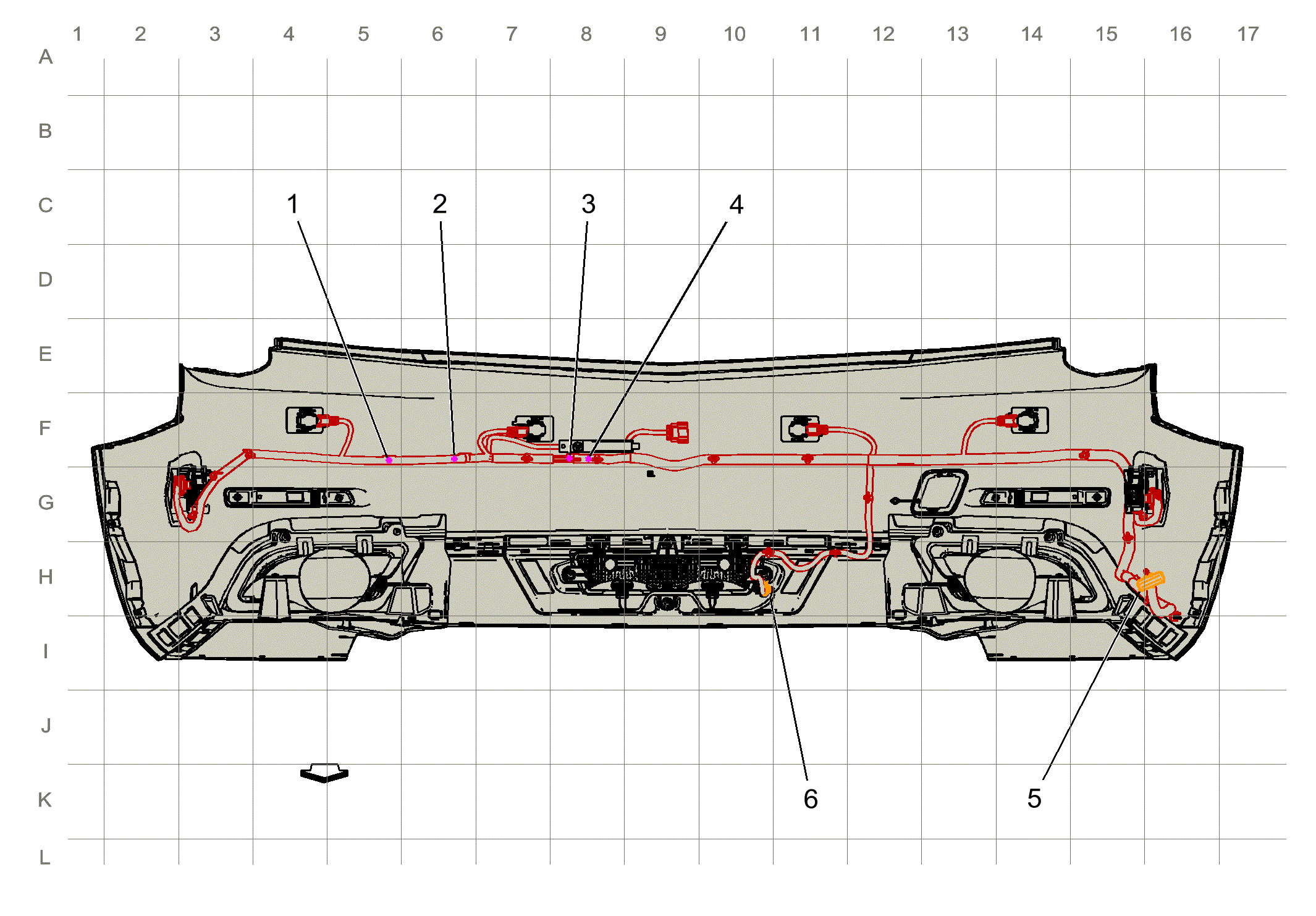

GM3454907Courtesy of GENERAL MOTORS COMPANY
Items
1. J417 Rear Fascia Harness
2. J415 Rear Fascia Harness (UKC)
3. J418 Rear Fascia Harness
4. J416 Rear Fascia Harness (UKC)
5. X415 Body Harness to Rear Fascia Harness (20 Cavities) X415 Body Harness to Rear Fascia Harness
6. X416 Rear Fascia Harness to Backup Lamp Assembly Harness (3 Cavities) X416 Rear Fascia Harness to Backup Lamp Assembly Harness (-T79)X416 Rear Fascia Harness to Backup Lamp Assembly Harness (T79)
