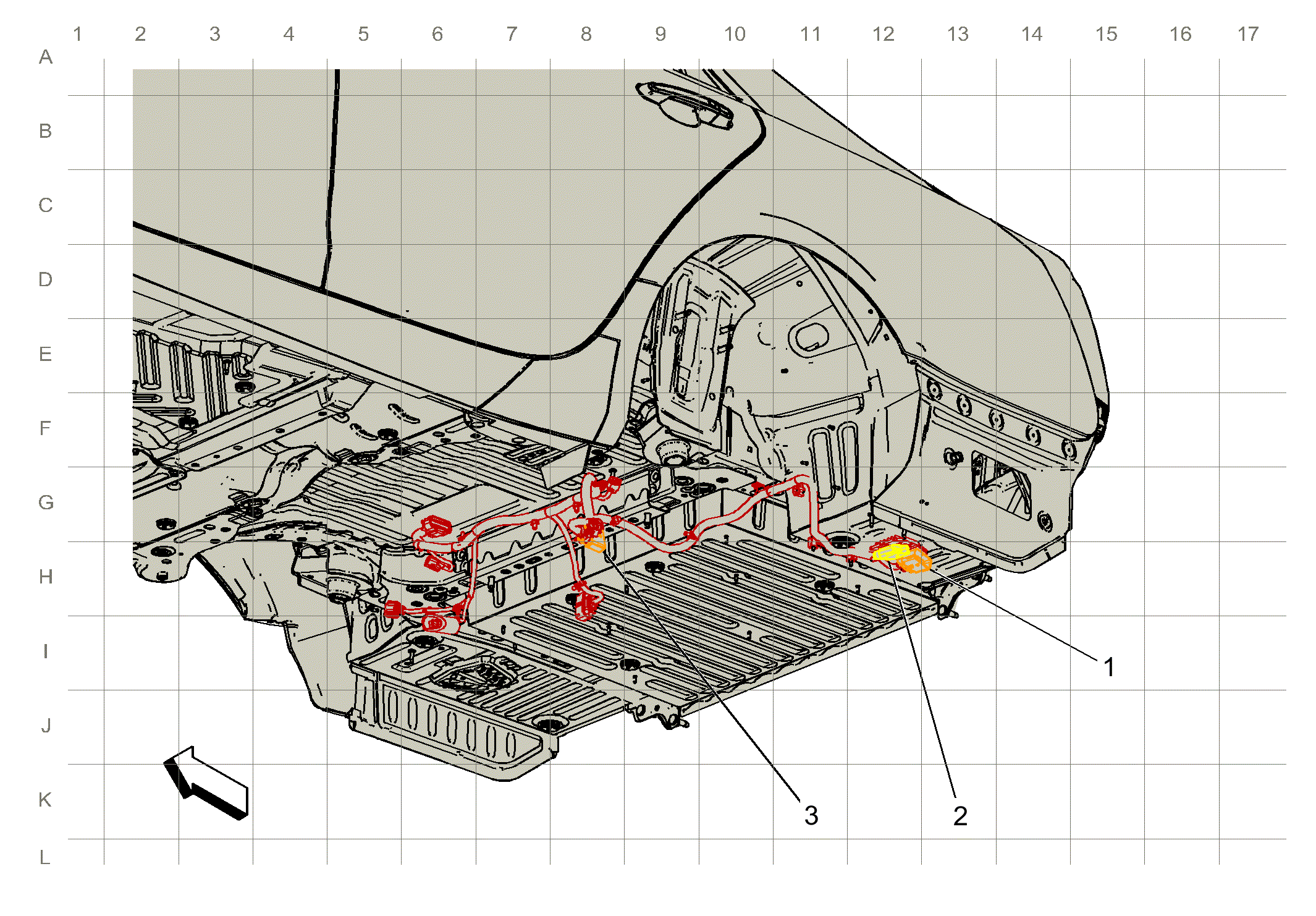

Rear Chassis Harness Routing

GM3454900Courtesy of GENERAL MOTORS COMPANY
Items
1. X403 Body Harness to Rear Chassis Harness (16 Cavities) X403 Body Harness to Rear Chassis Harness
2. X402 Body Harness to Rear Chassis Harness (20 Cavities) X402 Body Harness to Rear Chassis Harness
3. X405 Body Harness to Rear Chassis Harness (16 Cavities) (G96) X405 Body Harness to Rear Chassis Harness
