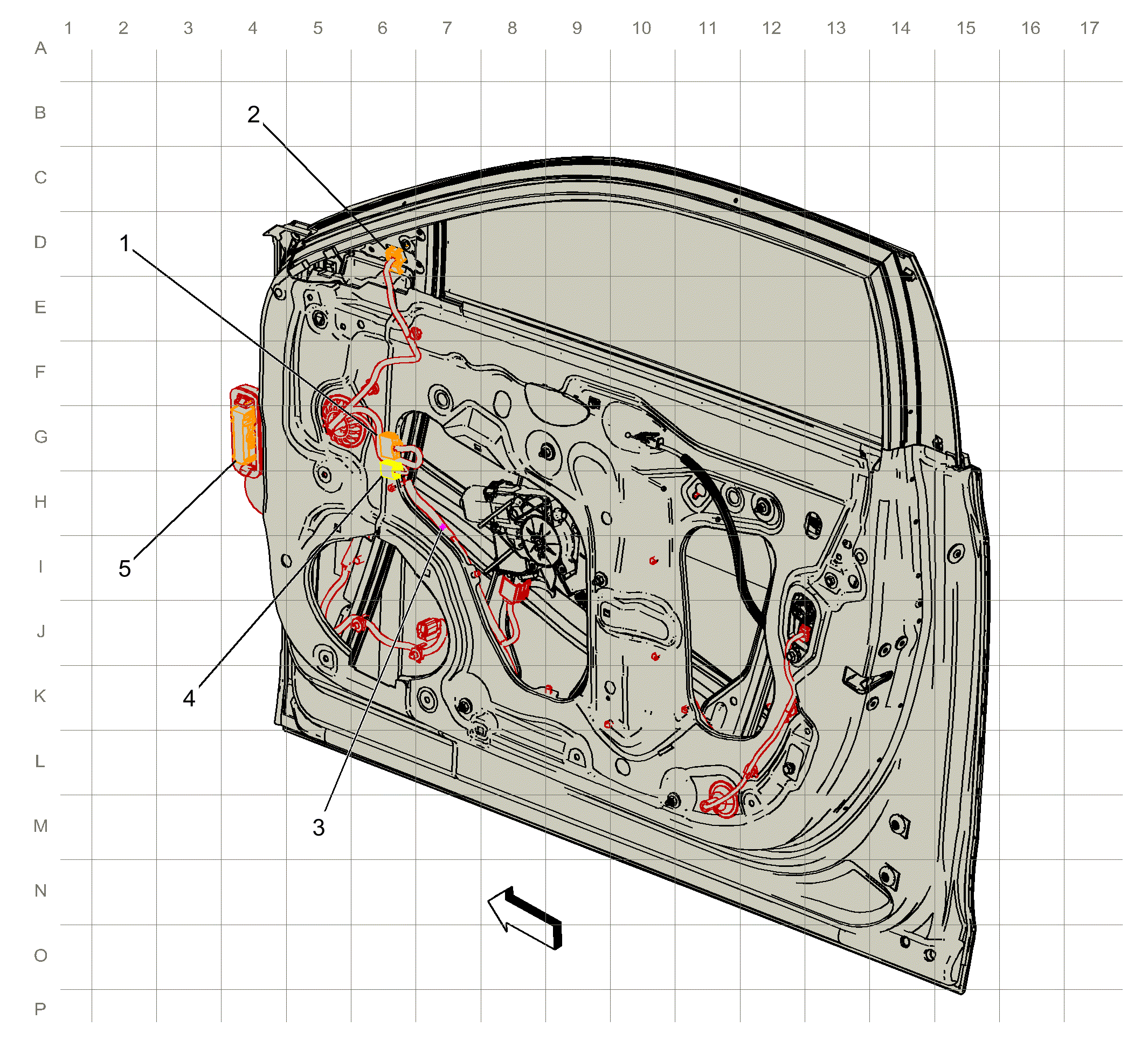

Passenger Door Harness Routing

GM3454884Courtesy of GENERAL MOTORS COMPANY
Items
1. X606 Passenger Door Harness to Passenger Door Trim Harness (20 Cavities) X606 Passenger Door Harness to Passenger Door Trim Harness
2. X610 Passenger Door Harness to Passenger Outside Rearview Mirror Harness (18 Cavities) X610 Passenger Door Harness to Passenger Outside Rearview Mirror Harness (-UVH)X610 Passenger Door Harness to Passenger Outside Rearview Mirror Harness (UVH)
3. J600 Passenger Door Harness
4. X605 Passenger Door Harness to Passenger Door Trim Harness (12 Cavities) X605 Passenger Door Harness to Passenger Door trim Harness
5. X600 Passenger Door Harness to Body Harness (41 Cavities) X600 Passenger Door Harness to Body Harness
