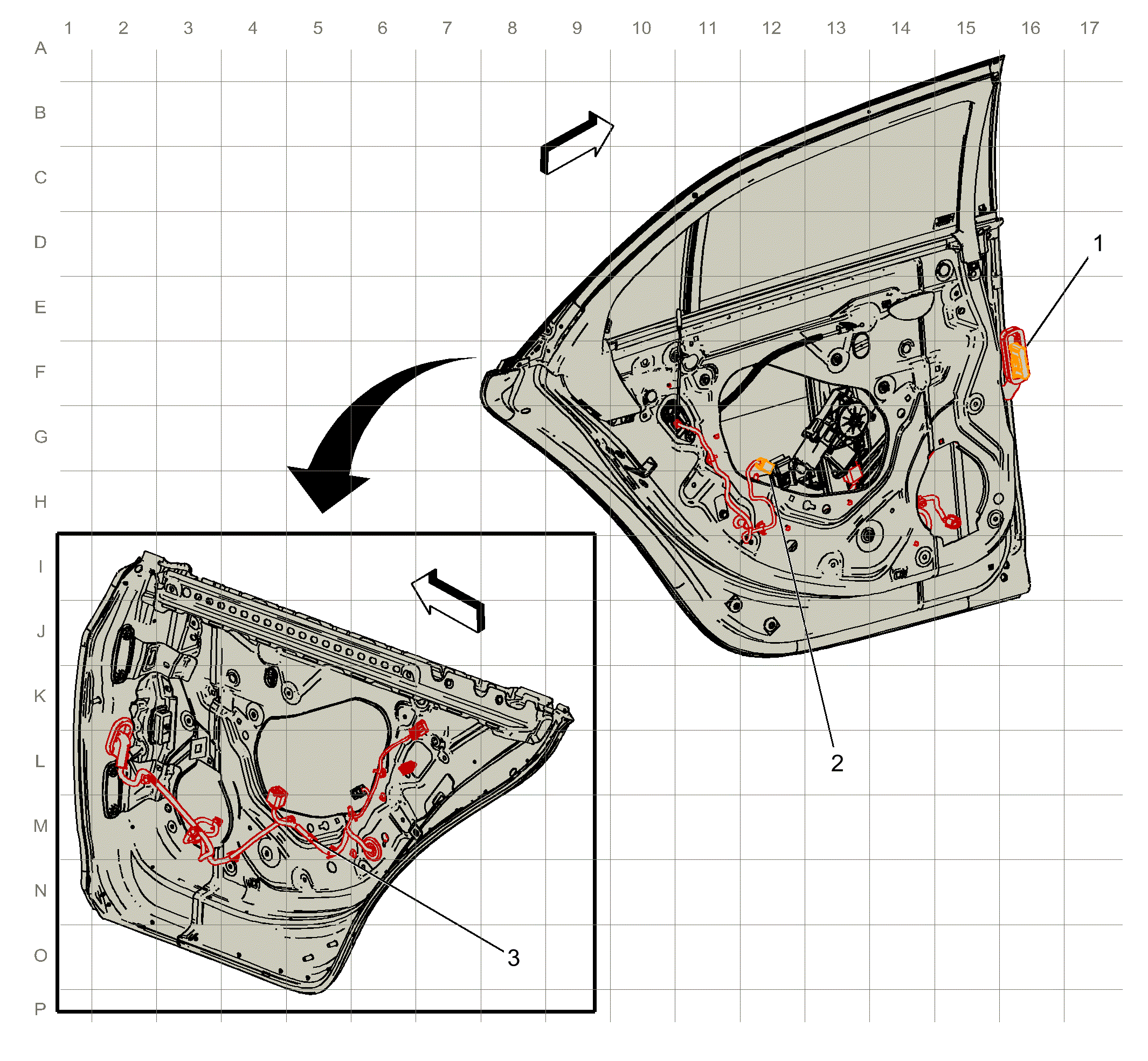

Left Rear Door Harness Routing

GM3454886Courtesy of GENERAL MOTORS COMPANY
Items
1. X700 Left Rear Door Harness to Body Harness (26 Cavities) X700 Left Rear Door Harness to Body Harness
2. X705 Left Rear Door Harness to Left Rear Door Trim Harness (8 Cavities) X705 Left Rear Door Harness to Left Rear Door Trim Harness
3. J700 Left Rear Door Harness
