Fuel Tank Harness Routing

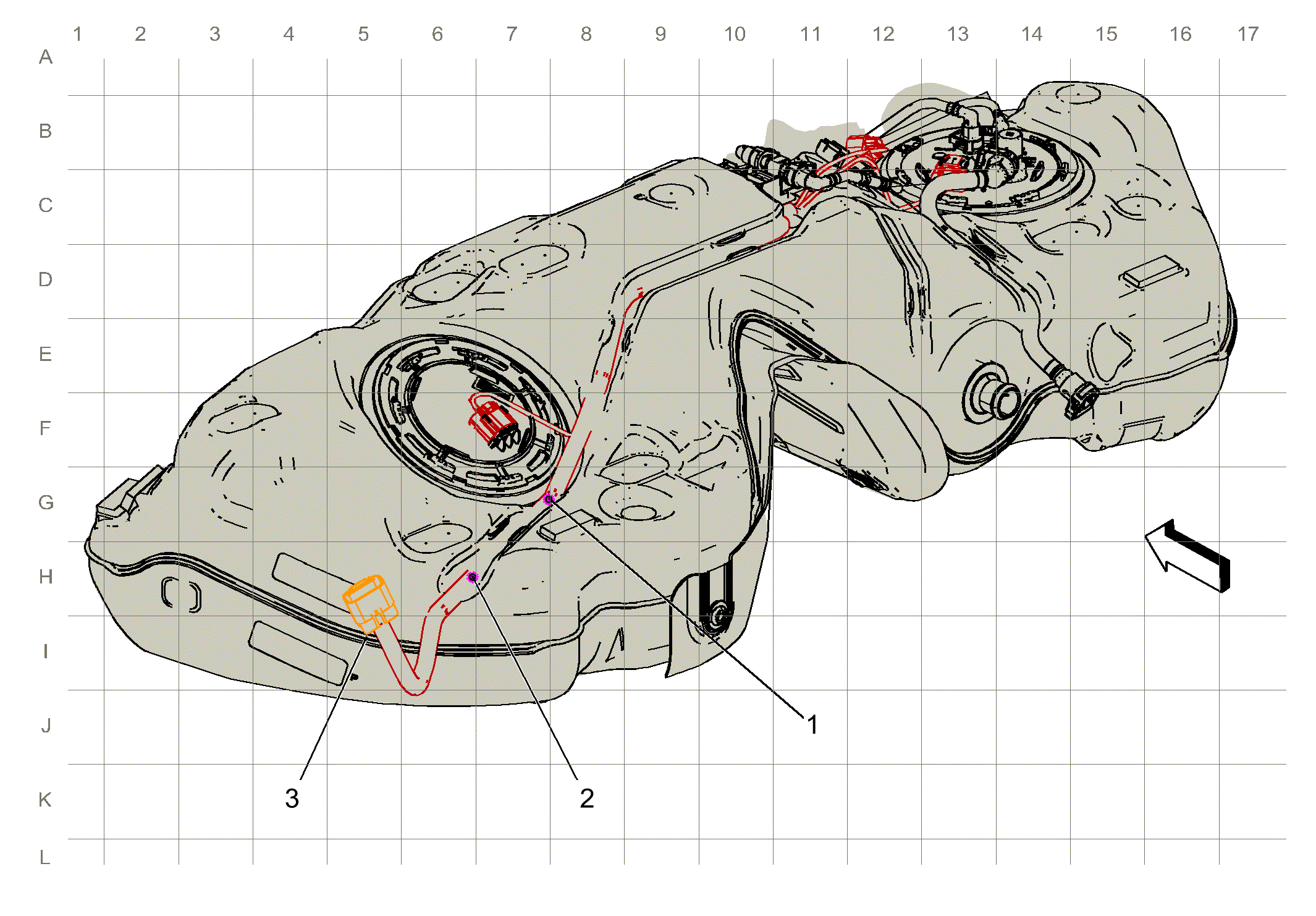

GM3652330Courtesy of GENERAL MOTORS COMPANY
Items
1. J375 Fuel Tank Harness
2. J376 Fuel Tank Harness
3. X350 Body Harness to Fuel Tank Harness (12 Cavities) X350 Body Harness to Fuel Tank Harness
