Front Fascia Harness Routing

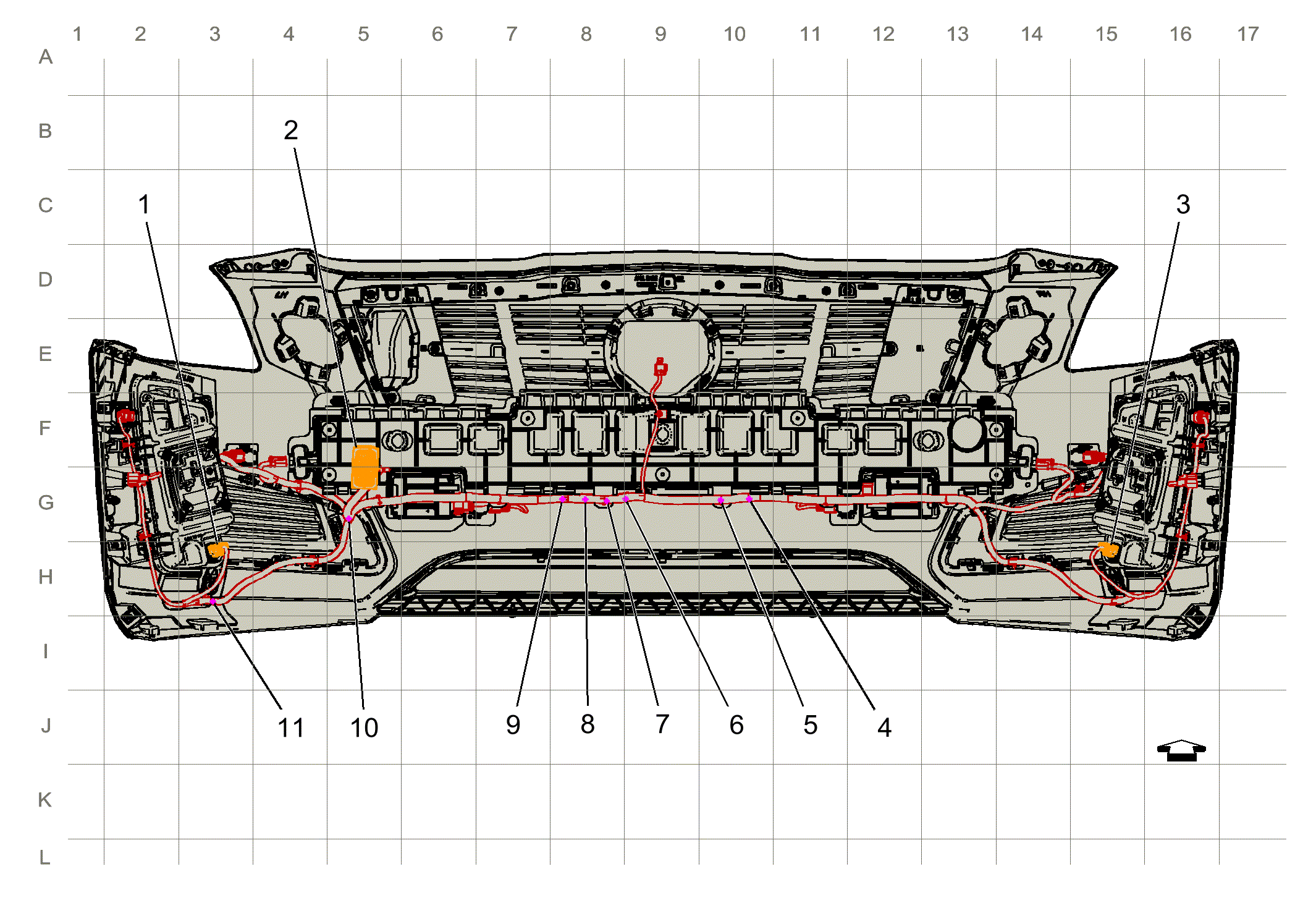

GM4548960Courtesy of GENERAL MOTORS COMPANY
Items
1. X111 Front Fascia Harness to Left Multifunction Lamp Harness (4 Cavities) X111 Front Fascia Harness to Left Multifunction Lamp Harness
2. X100 Front Fascia Harness to Forward Lamp Harness X100 Front Fascia Harness to Forward Lamp Harness
3. X121 Front Fascia Harness to Right Multifunction Lamp Harness (4 Cavities) X121 Front Fascia Harness to Headlamp Harness
4. J103 Front Fascia Harness (UGN)
5. J100 Front Fascia Harness
6. J111 Front Fascia Harness
7. J104 Front Fascia Harness (UD5 or UFQ)
8. J101 Front Fascia Harness (UGN)
9. J105 Front Fascia Harness (UD5 or UFQ)
10. J115 Front Fascia Harness
11. J102 Front Fascia Harness (TUJ)
