Front Fascia Harness Routing (LT4)

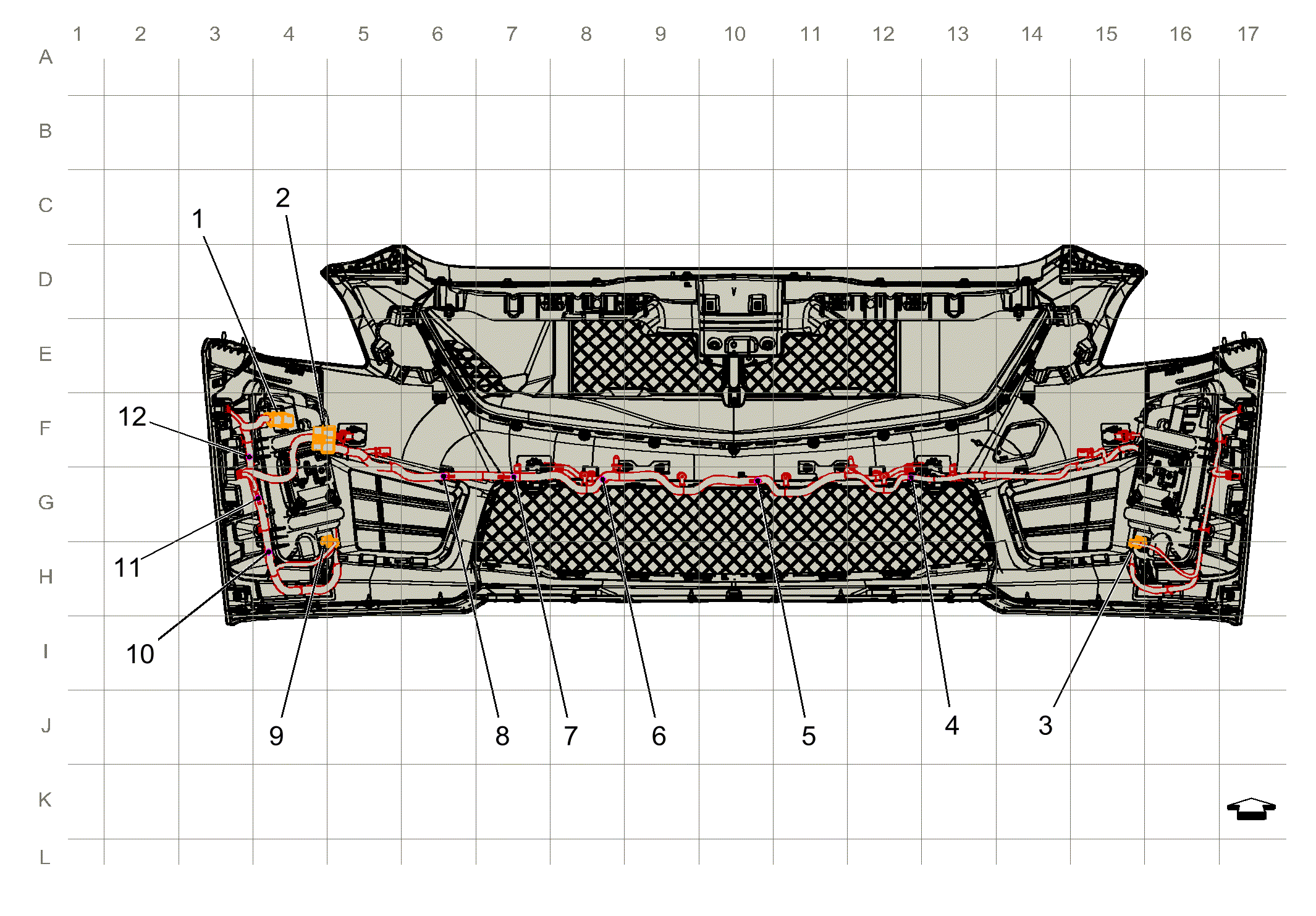

GM4553999Courtesy of GENERAL MOTORS COMPANY
Items
1. X102 Front Fascia Harness to Forward Lamp Harness (LT4) X102 Front Fascia Harness to Forward Lamp Harness
2. X101 Front Fascia Harness to Forward Lamp Harness (LT4) X101 Front Fascia Harness to Forward Lamp Harness
3. X121 Front Fascia Harness to Right Multifunction Lamp Harness (4 Cavities) X121 Front Fascia Harness to Headlamp Harness
4. J111 Front Fascia Harness
5. J100 Front Fascia Harness
6. J104 Front Fascia Harness (UD5 or UFQ)
7. J105 Front Fascia Harness (UD5 or UFQ)
8. J112 Front Fascia Harness
9. X111 Front Fascia Harness to Left Multifunction Lamp Harness (4 Cavities) X111 Front Fascia Harness to Left Multifunction Lamp Harness
10. J115 Front Fascia Harness
11. J102 Front Fascia Harness (TUJ)
12. J116 Front Fascia Harness
