Driver Door Harness Routing

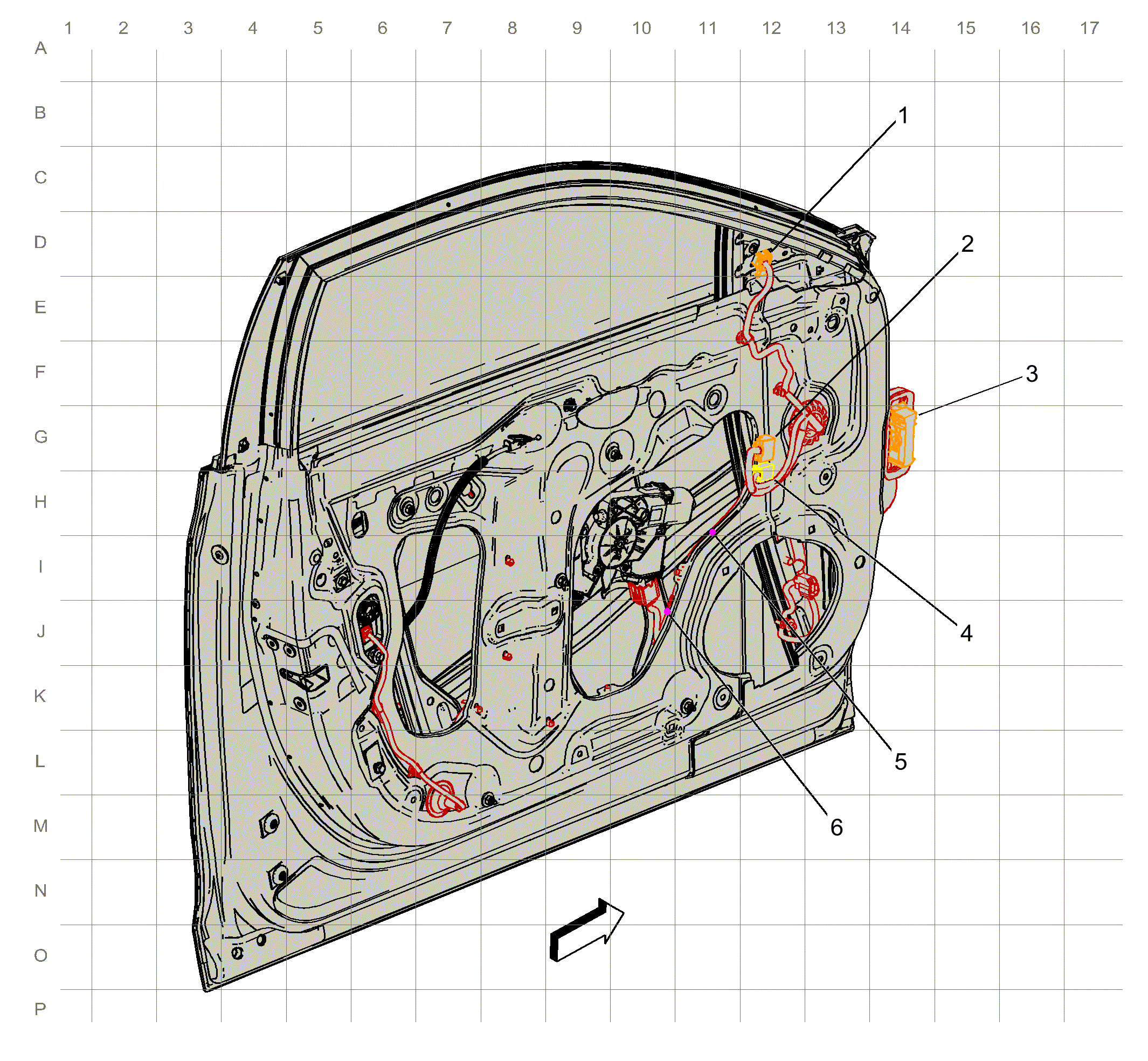

GM3454879Courtesy of GENERAL MOTORS COMPANY
Items
1. X510 Driver Door Harness to Driver Outside Rearview Mirror Harness (18 Cavities) X510 Driver Door Harness to Driver Outside Rearview Mirror Harness (-UVH)X510 Driver Door Harness to Driver Outside Rearview Mirror Harness (UVH)
2. X505 Driver Door Harness to Driver Door Trim Harness (20 Cavities) X505 Driver Door Harness to Driver Door Trim Harness
3. X500 Driver Door Harness to Body Harness (41 Cavities) X500 Driver Door Harness to Body Harness
4. X506 Driver Door Harness to Driver Door Trim Harness (12 Cavities) X506 Driver Door Harness to Driver Door Trim Harness
5. J501 Driver Door Harness
6. J500 Driver Door Harness
