Body Harness Routing - Right Rear of Passenger Compartment

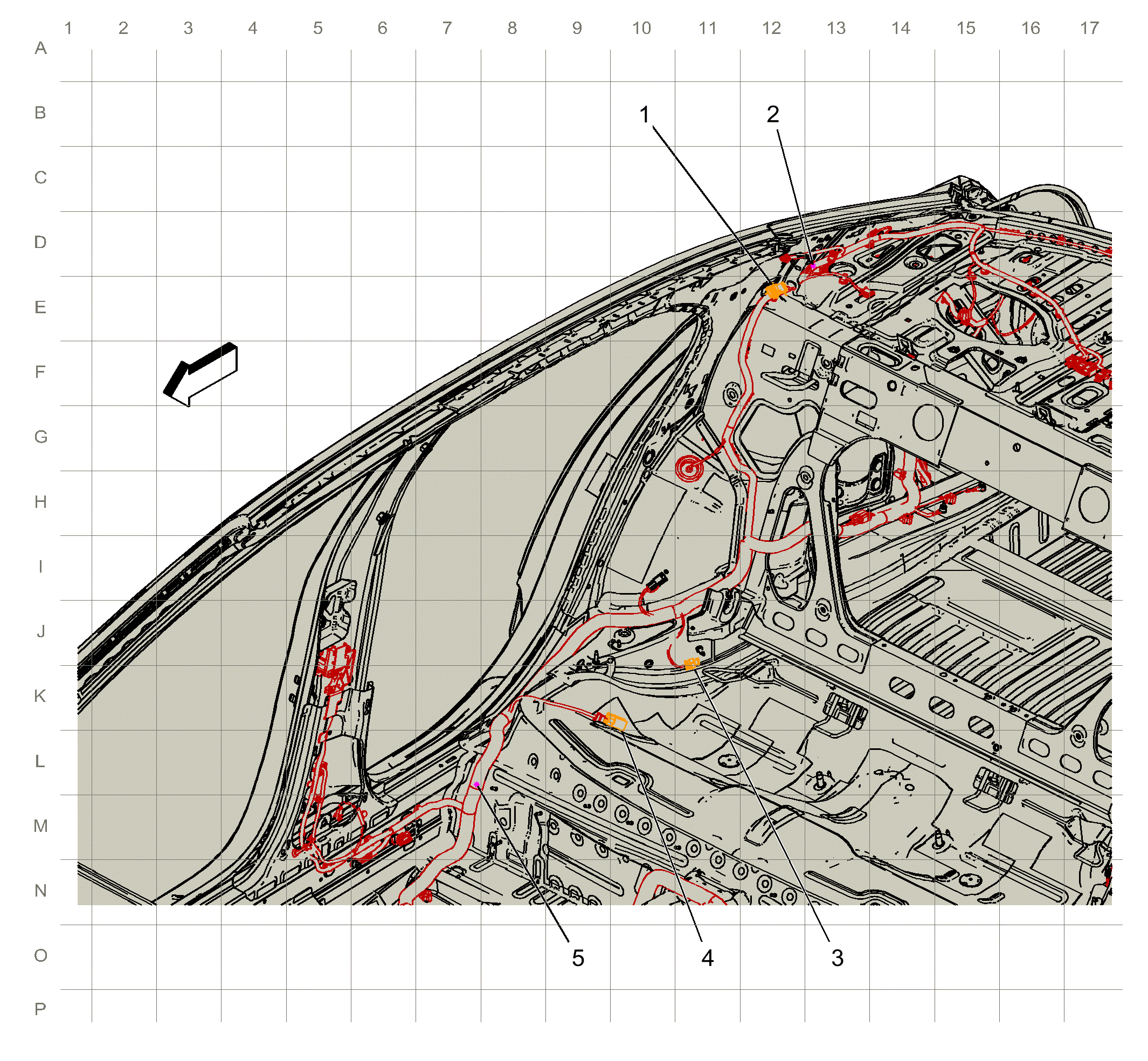

GM3454878Courtesy of GENERAL MOTORS COMPANY
Items
1. X422 Rear Window Harness to Body Harness (4 cavities) (DB3) X422 Rear Window Harness to Body Harness (DB3)
2. J424 Body Harness (UQS)
3. X353 Body Harness to Right Rear Seat Side Air Bag Harness (3 Cavities) X353 Body Harness to Right Rear Seat Side Air Bag Harness
4. X356 Rear Seat Harness to Body Harness (6 Cavities) (KA6) X356 Rear Seat Harness to Body Harness (KA6)
5. J330 Body Harness (DB3/DD8/UVC)
