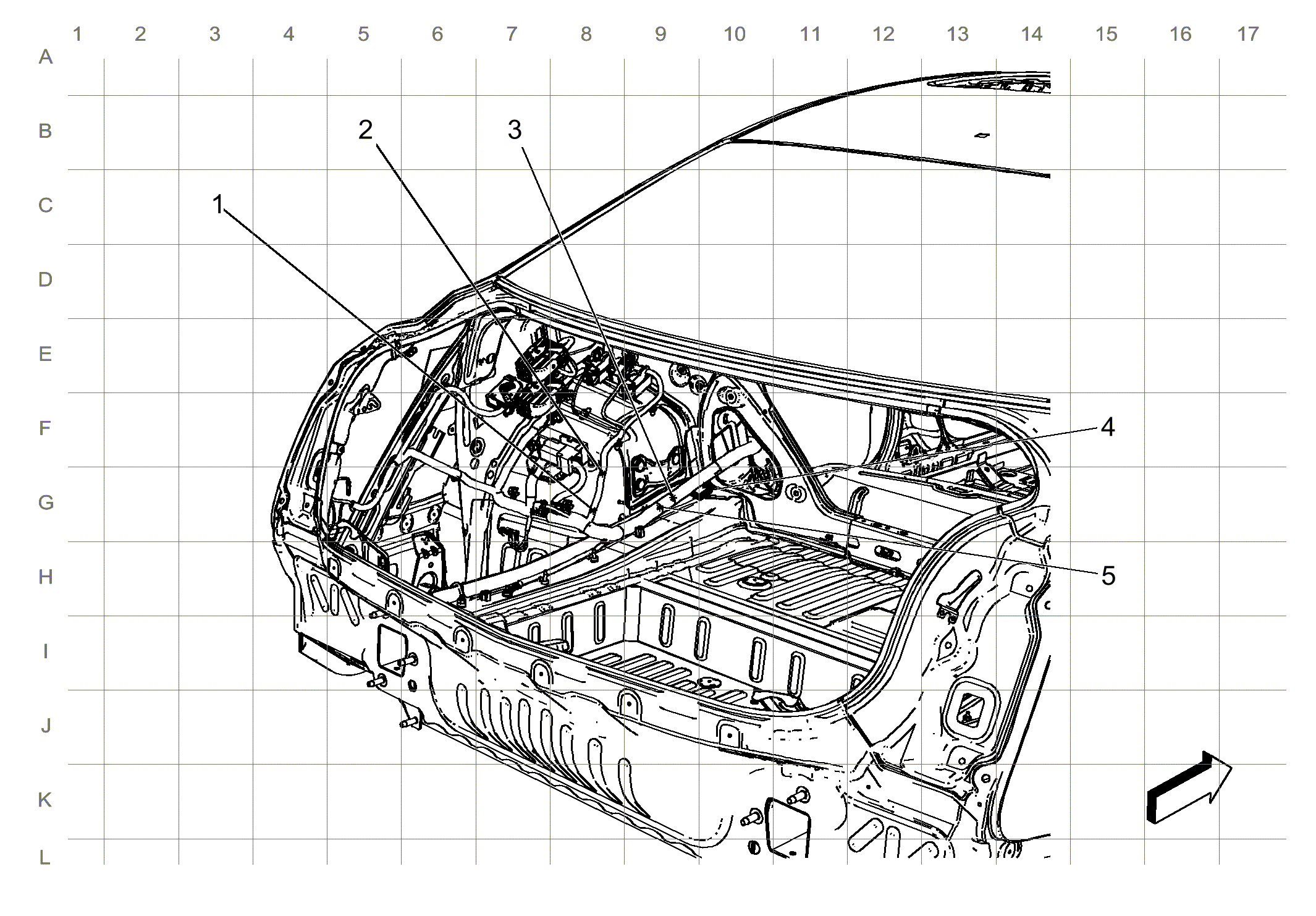

Body Harness Routing - Left Side of Luggage Compartment

GM4597681Courtesy of GENERAL MOTORS COMPANY
Items
1. J420 Body Harness (G96)
2. J431 Body Harness
3. J422 Body Harness (DB3+V2S)
4. JX400 Body Harness JX400 Splice Pack
5. J427 Body Harness (UKC)
