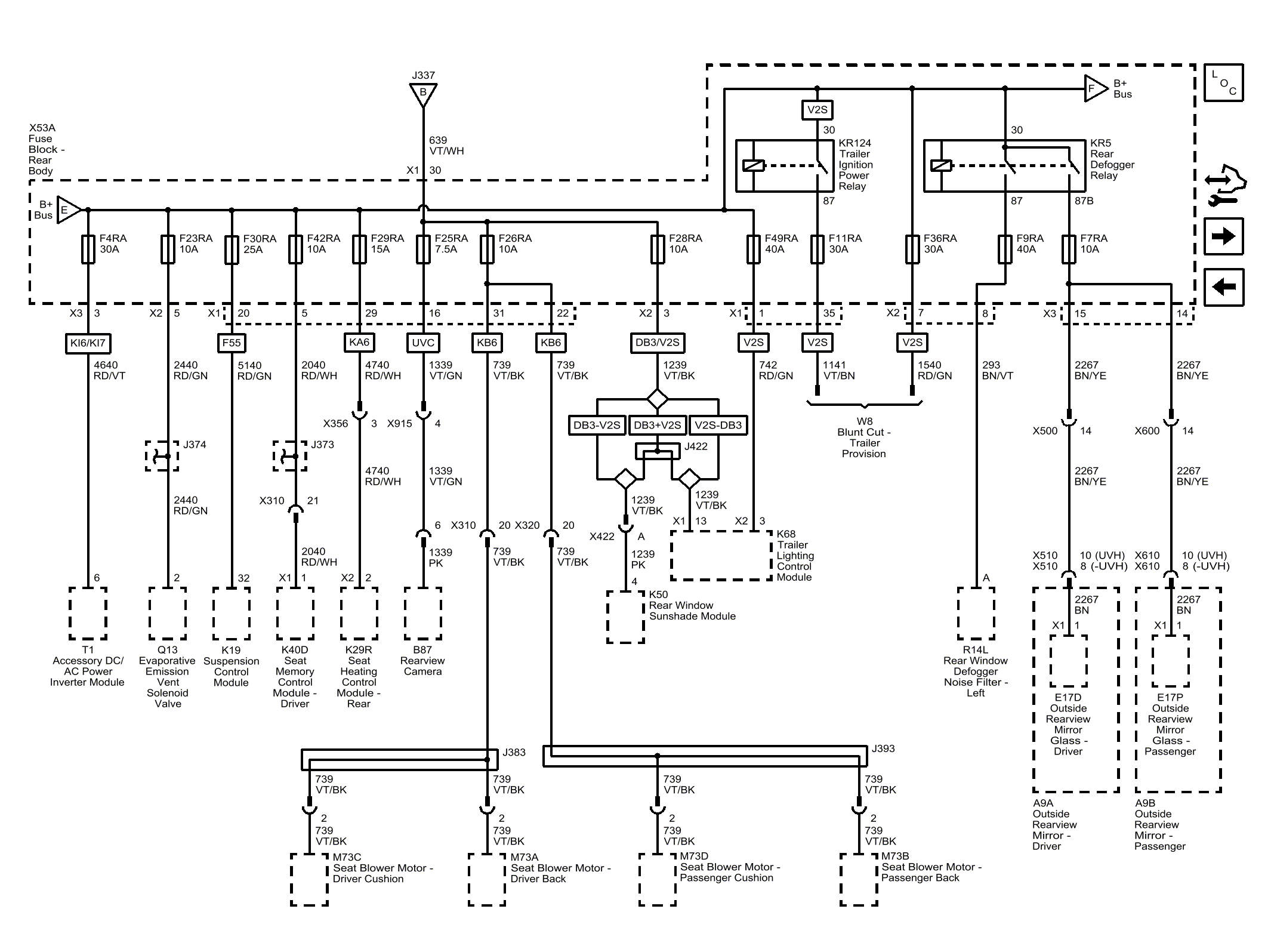

F4RA, F7RA, F9RA, F11RA, F23RA, F25RA, F26RA, F28RA, F29RA, F30RA, F36RA, F42RA and F49RA

GM4695246

Courtesy of GENERAL MOTORS COMPANY
