Wiring Systems And Power Management - Wiring Harness Routing And Schematic Wiring Diagrams
>>
Wiring Harness Routing Views And Schematic Wiring Diagrams
>>
Power Distribution Wiring Schematics
>>

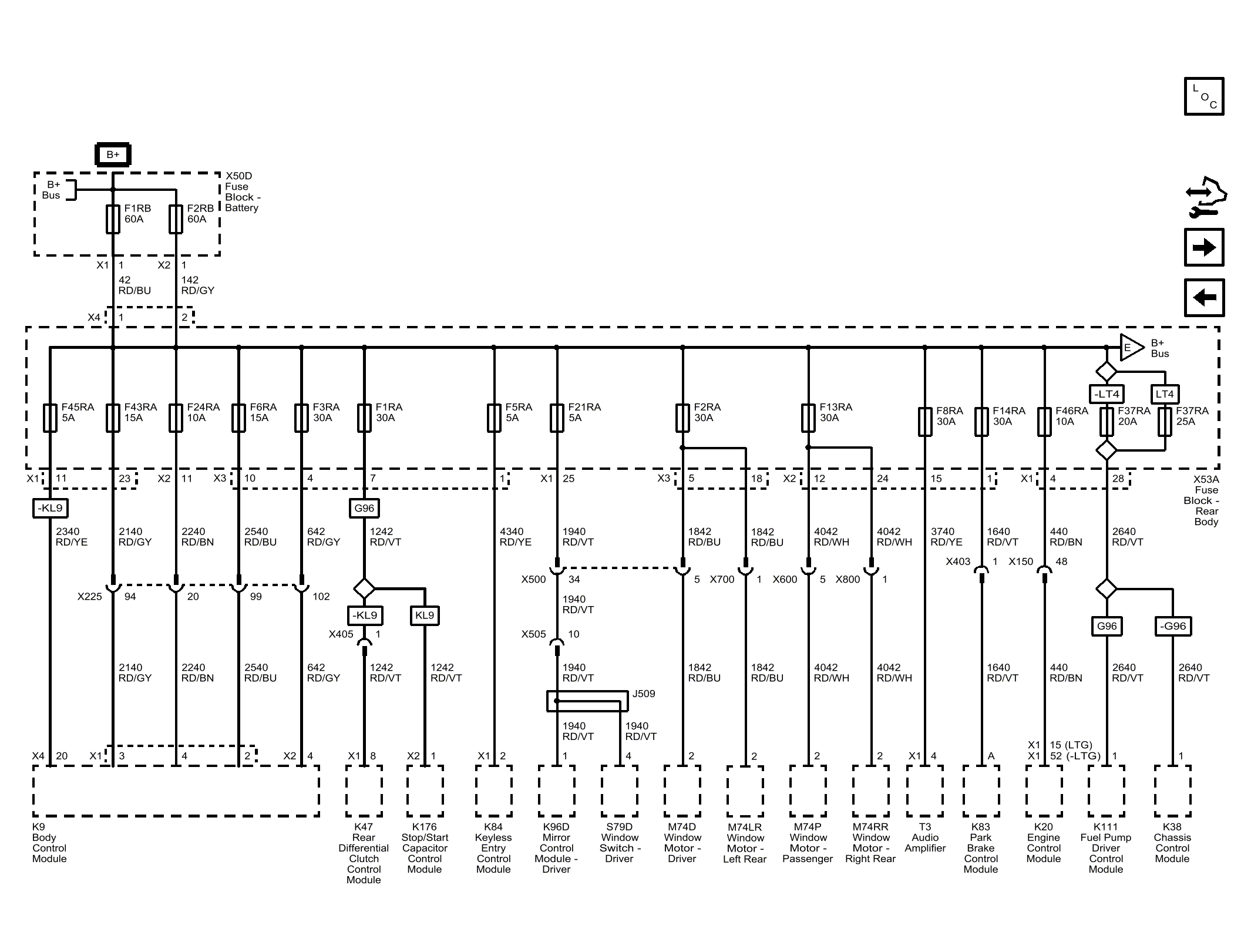

F1RA, F1RB, F2RA, F2RB, F3RA, F5RA, F6RA, F8RA, F13RA, F14RA, F21RA, F24RA, F37RA, F43RA, F45RA and F46RA
F1RA, F1RB, F2RA, F2RB, F3RA, F5RA, F6RA, F8RA, F13RA, F14RA, F21RA, F24RA, F37RA, F43RA, F45RA and F46RA
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
