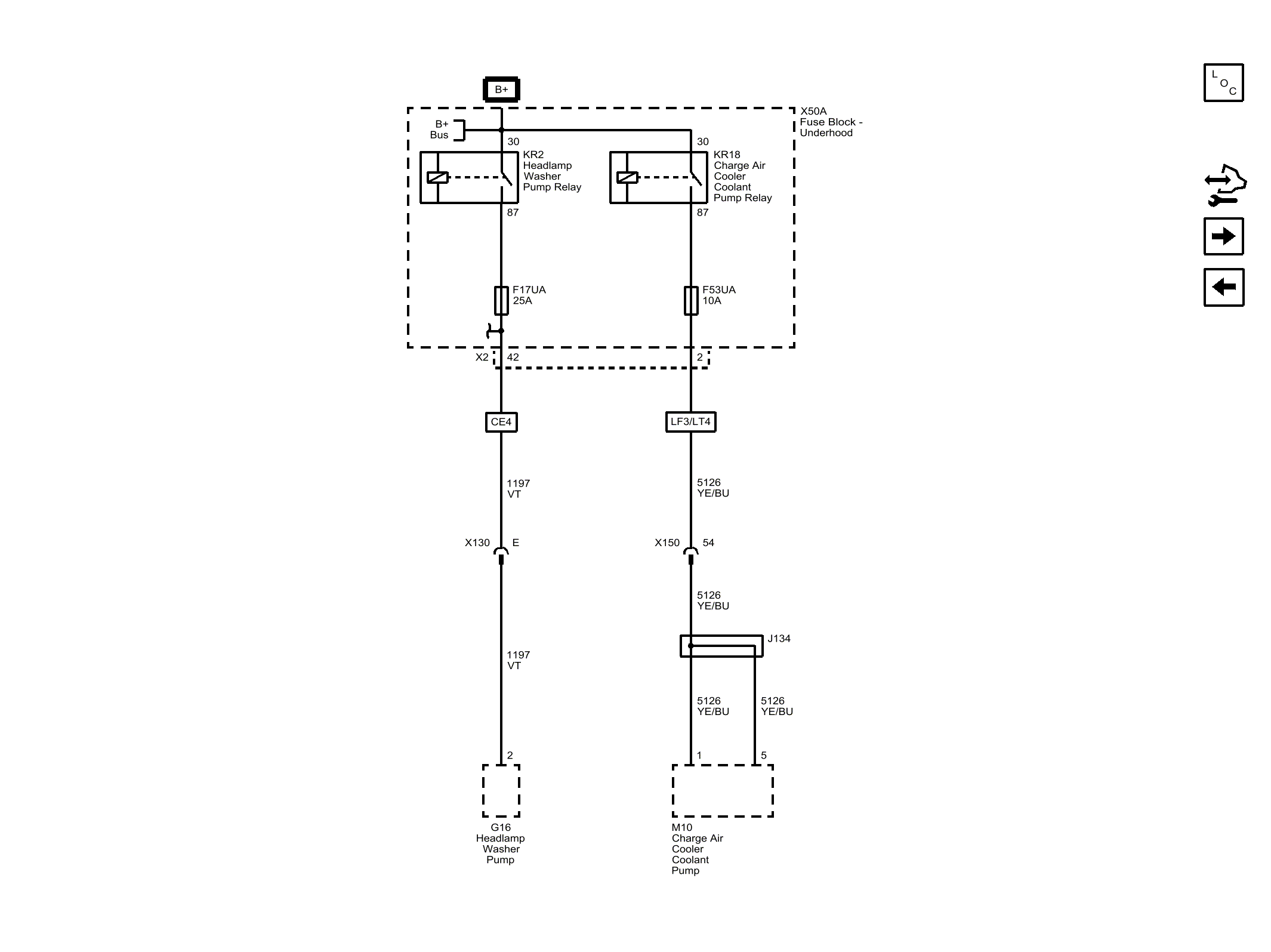

Home >> Cadillac >> 2018 >> CTS V >> Repair and Diagnosis >> Electrical >> Motors, Switches, Relays >> Wiring Systems And Power Management - Wiring Harness Routing And Schematic Wiring Diagrams >> Wiring Harness Routing Views And Schematic Wiring Diagrams >> Power Distribution Wiring Schematics >> F17UA, F21UA, F41UA, F51UA and F54UA
