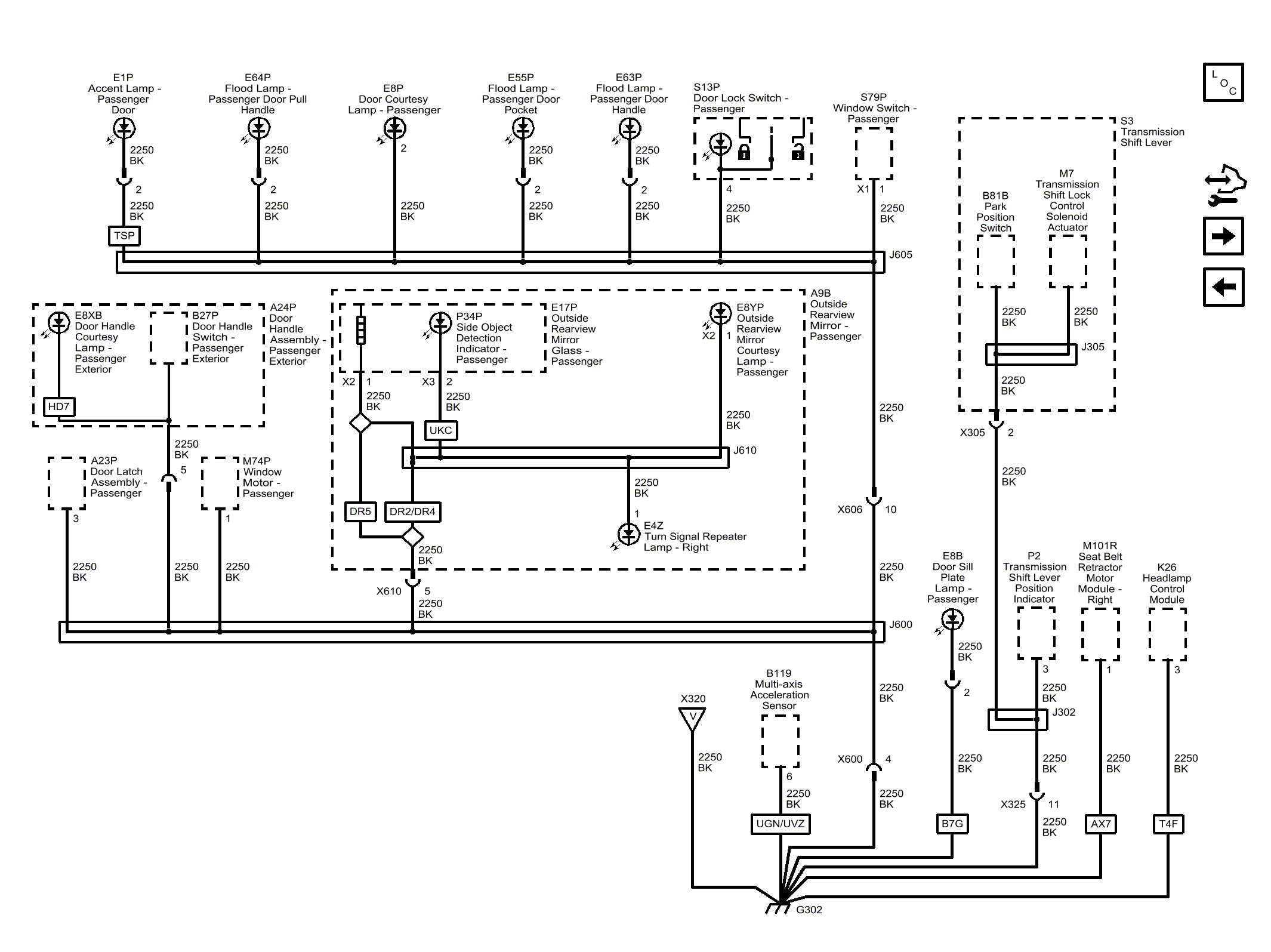

Home >> Cadillac >> 2018 >> CTS V >> Repair and Diagnosis >> Electrical >> Motors, Switches, Relays >> Wiring Systems And Power Management - Wiring Harness Routing And Schematic Wiring Diagrams >> Wiring Harness Routing Views And Schematic Wiring Diagrams >> Ground Distribution Wiring Schematics >> G302 (1 of 2)
