Accessory Power Receptacle Replacement (120 Volt)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the front floor console compartment. Refer to Front Floor Console Compartment Replacement .

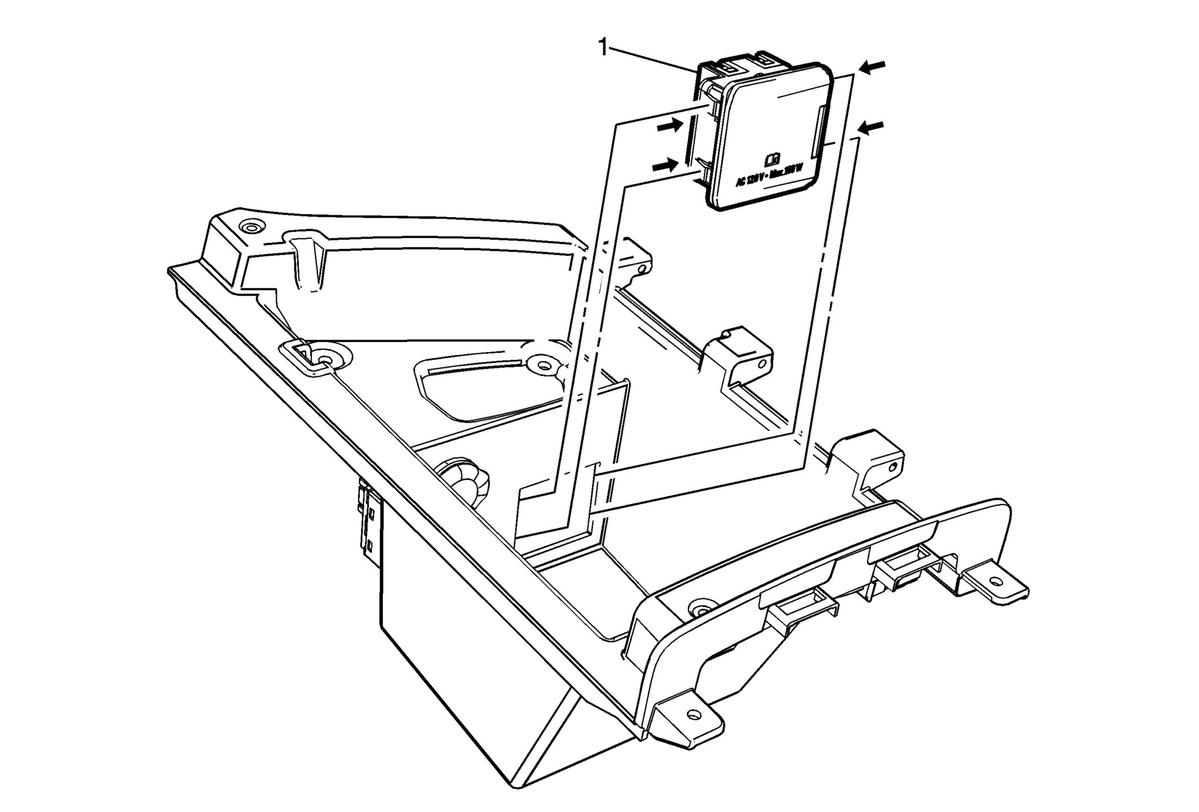

1	Accessory Power Receptacle Procedure  Depress the tabs on the receptacle to remove.
