Front Axle Propeller Shaft Heat Shield Replacement

Courtesy of GENERAL MOTORS COMPANY

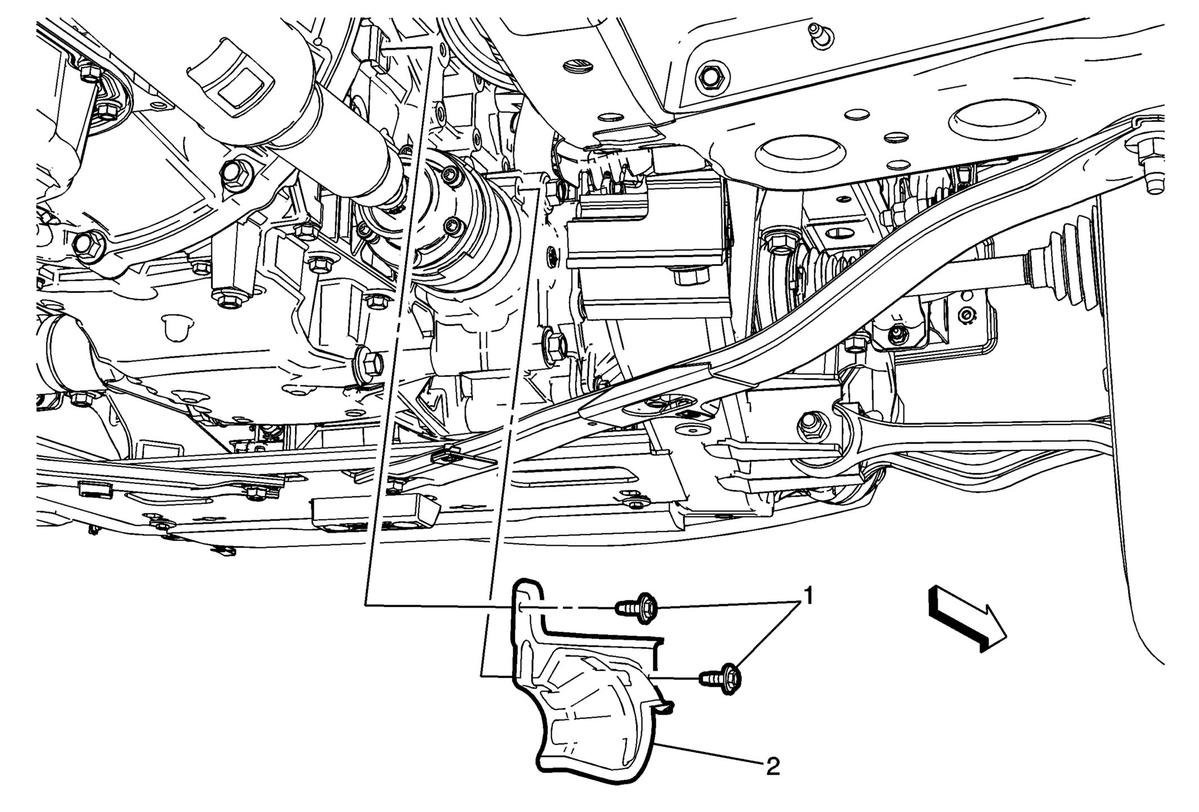

Callout	Component Name
Preliminary Procedure Raise and support the vehicle. Lifting and Jacking the Vehicle (CTS)Lifting and Jacking the Vehicle (CTS-V) If equipped with LFX, remove the right side catalytic converter. Catalytic Converter Replacement - Right Side (LF3)Catalytic Converter Replacement - Right Side (LGX)Catalytic Converter Replacement - Right Side (LT4)
1	Front Axle Propeller Shaft Heat Shield Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Front Axle Propeller Shaft Heat Shield

Callout

Component Name

Preliminary Procedure

Front Axle Propeller Shaft Heat Shield Bolt [2x]

CAUTION:

Tighten
9 N.m (80 lb in)

Front Axle Propeller Shaft Heat Shield
