Rear Differential Clutch Control Module Replacement (226mm eLSD)

Courtesy of GENERAL MOTORS COMPANY

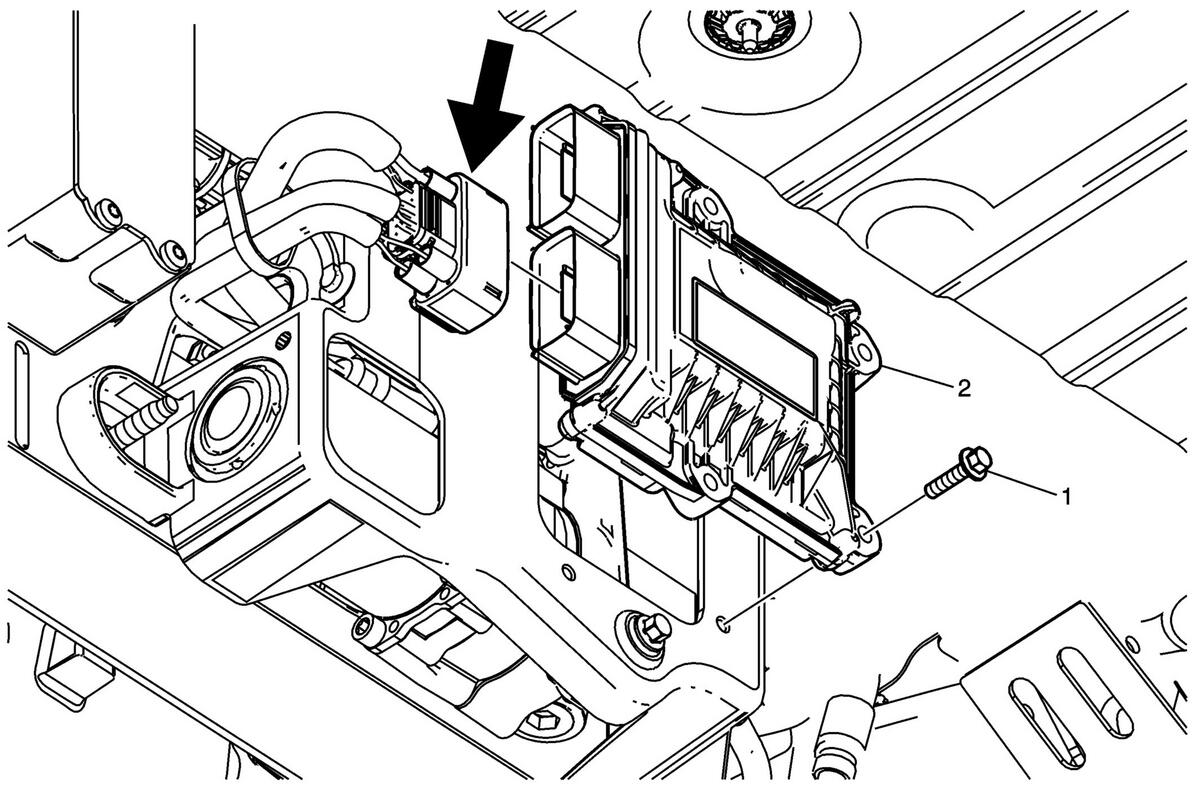

Callout	Component Name
Preliminary Procedure Lift and support the vehicle. Refer to Lifting and Jacking the Vehicle (CTS)Lifting and Jacking the Vehicle (CTS-V) . Disconnect the wiring harness connector before removal.
1	Rear Differential Clutch Control Module Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 6 N.m (53 lb in)
2	Rear Differential Clutch Control Module Procedure After the rear differential clutch control module has been replaced it must to be programmed. Refer to Control Module References .

Callout

Component Name

Preliminary Procedure

Lift and support the vehicle. Refer to Lifting and Jacking the Vehicle (CTS)Lifting and Jacking the Vehicle (CTS-V) .
Disconnect the wiring harness connector before removal.

Rear Differential Clutch Control Module Bolt (Qty: 4)

CAUTION:

Refer to Fastener Caution .

Tighten
6 N.m (53 lb in)

Rear Differential Clutch Control Module
Procedure
After the rear differential clutch control module has been replaced it must to be programmed. Refer to Control Module References .
