Sunroof Sunshade Motor Replacement

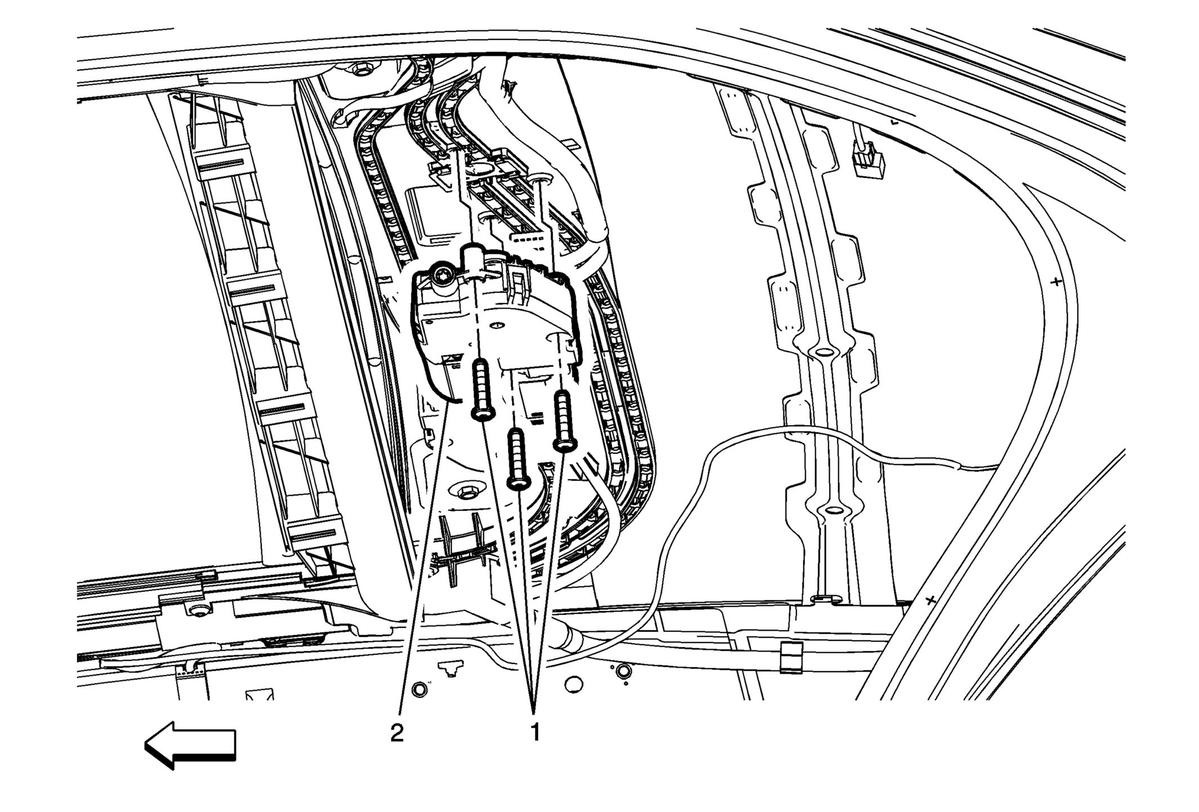

GM3443714

Callout

Component Name

Preliminary Procedure
Remove the headliner. Refer to Headlining Trim Panel Replacement (Without Sunroof)Headlining Trim Panel Replacement (With Sunroof) .

1

Sunroof Sunshade Motor Bolt (Qty: 3)

CAUTION:

Refer to Fastener Caution .

Procedure

Disconnect the electrical connector.
With a turning motion, pull downward on the sunroof sunshade motor. Disengage the motor from the drive cables.
Install the sunroof sunshade motor to the frame with a turning motion. Push upward. This will engage the motor into the drive cables.

Tighten
4 N.m (35 lb in)

2

Sunroof Sunshade Motor

Procedure

Verify the sunroof sunshade motor operation.
After installing the sunroof shade motor, refer to Sunroof Window Motor Initialization .
