Front Seat Heater Control Module Replacement (Uplevel)

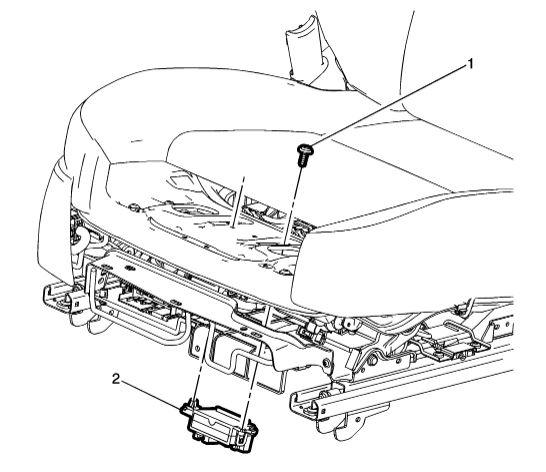

GM2844309Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the front seat front extension cushion. Refer to Front Seat Front Extension Cushion Replacement
1 Front Seat Heater Control Module Replacement Fastener (Qty: 2)
CAUTION:

Refer to Fastener Caution .
2 Front Seat Heater Control Module Replacement

Procedure

  1. Disconnect the electrical connectors.
  2. Refer to Control Module References for programing and setup information.
