Front Seat Cushion Front Finish Cover Replacement

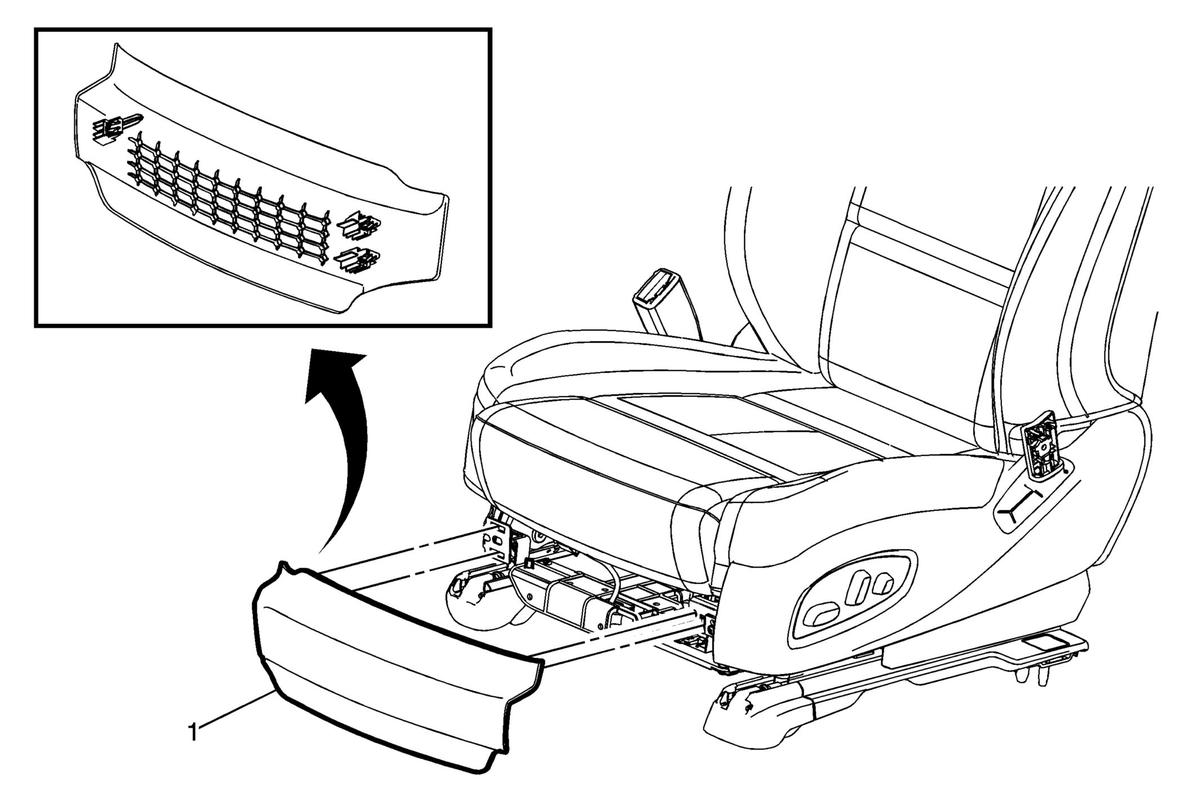

GM3461840Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Front Seat Cushion Front Finish Cover

Procedure

  1. Raise the seat to the highest position.
  2. Pull the inboard side of the cover forward first to disengage the retainer clips.
  3. Remove the front finish cover by pulling outward near the retainer clip locations.
